T-square with parallel cutter

Properties

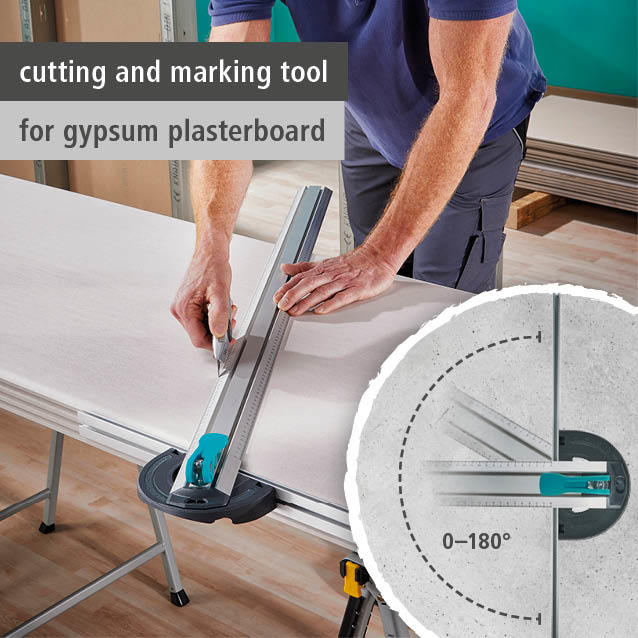

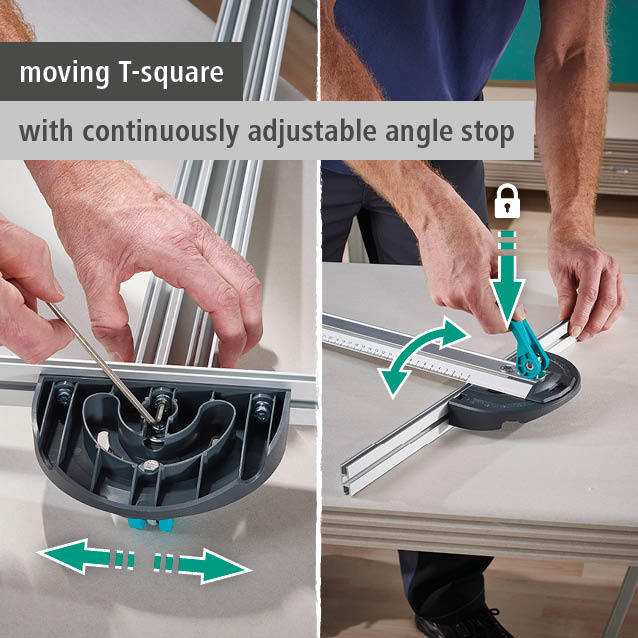

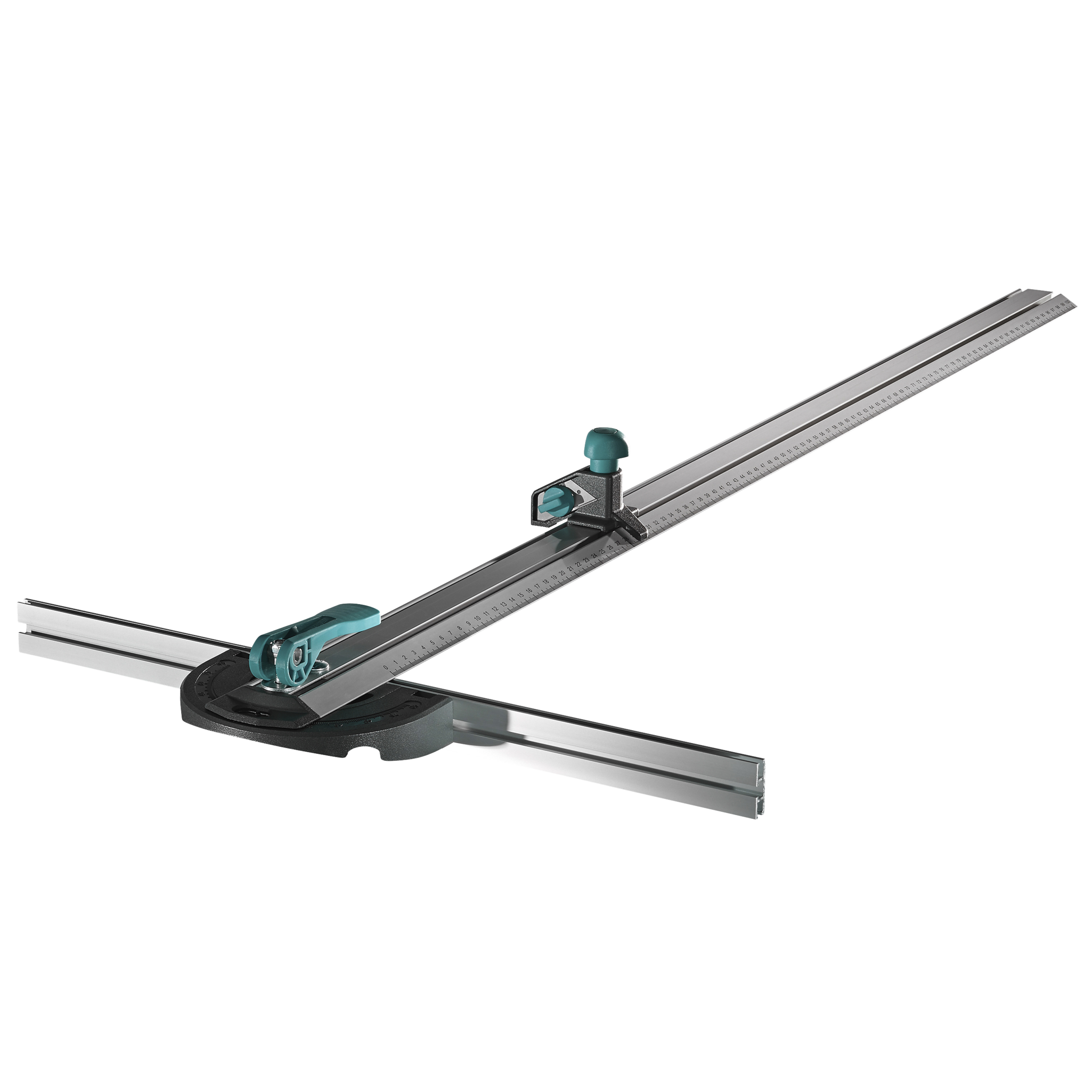

moving T-square with continuously adjustable angle stop for precise longitudinal and angle cuts of 0–180° in gypsum plasterboard

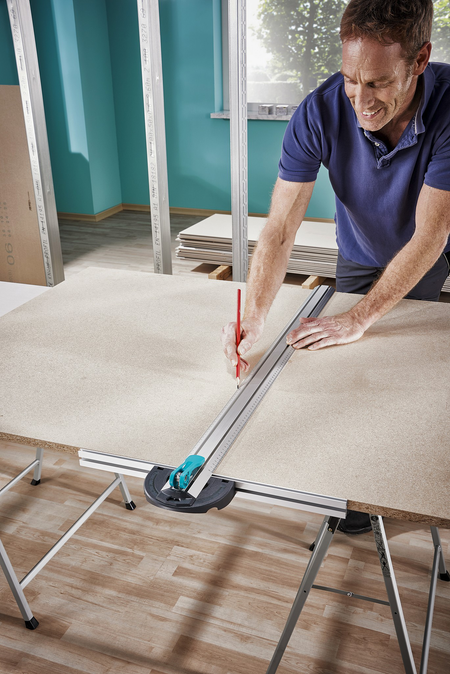

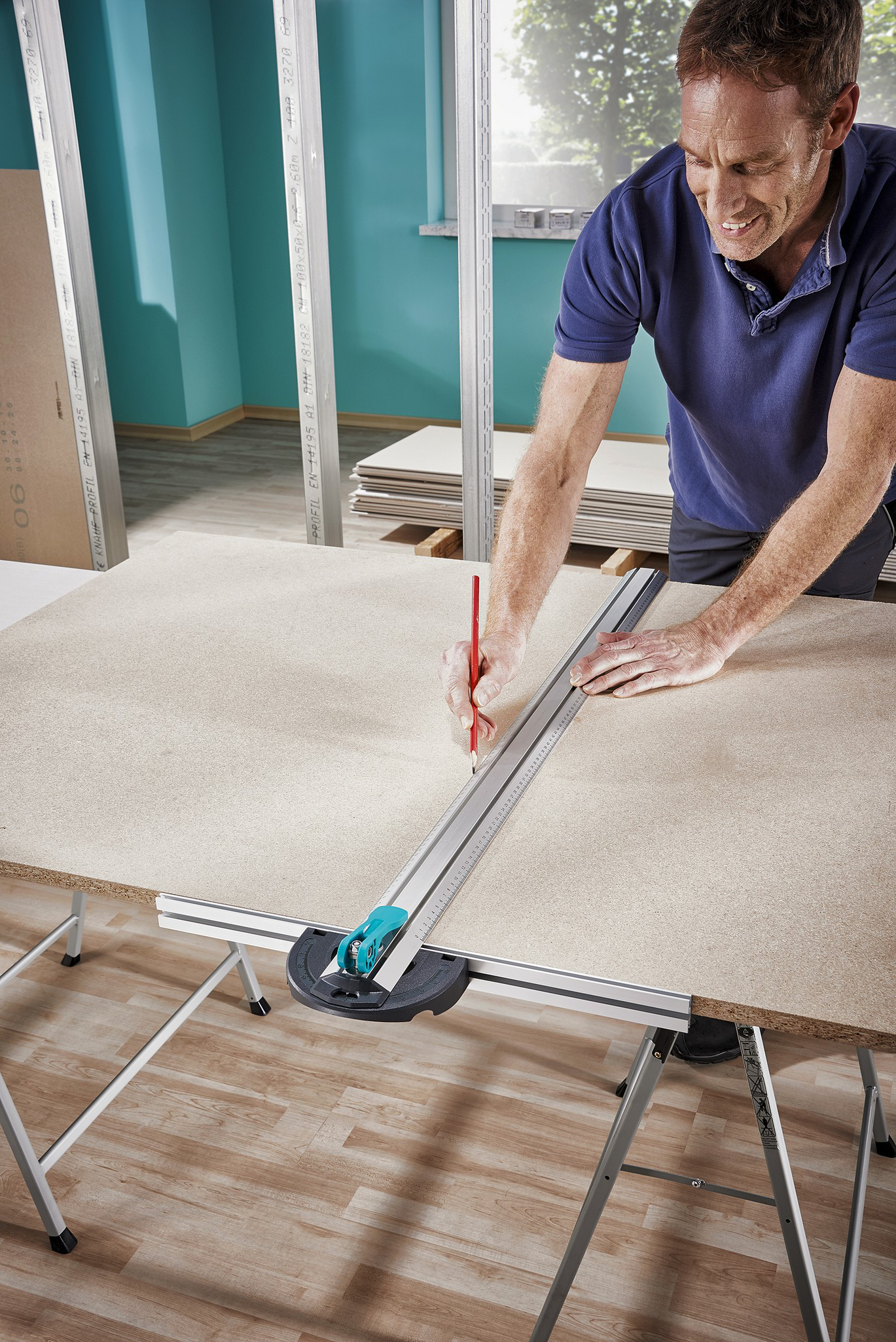

• integrated scale for precise marking of angle cuts at exactly the right angle enabling minimum subsequent filling work

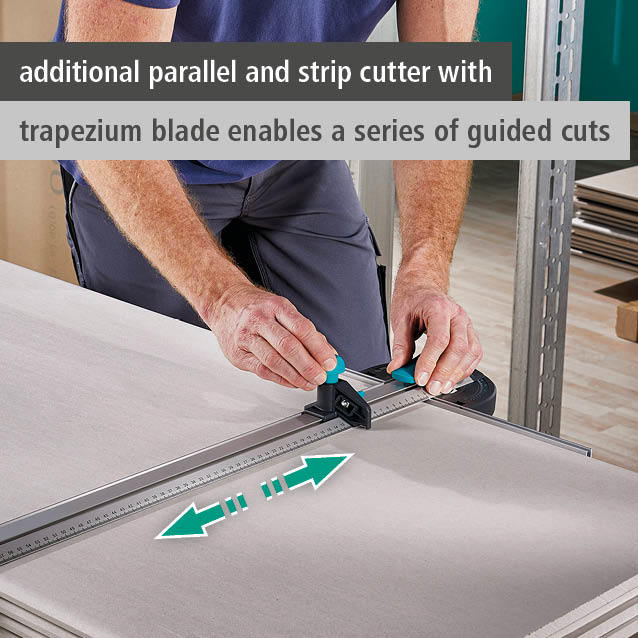

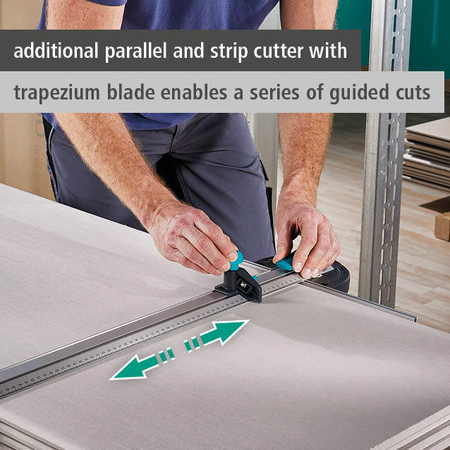

• additional parallel and strip cutter with trapezium blade enables a series of guided cuts
• durable thanks to corrosion-resistant surface made of anodised aluminium

Description

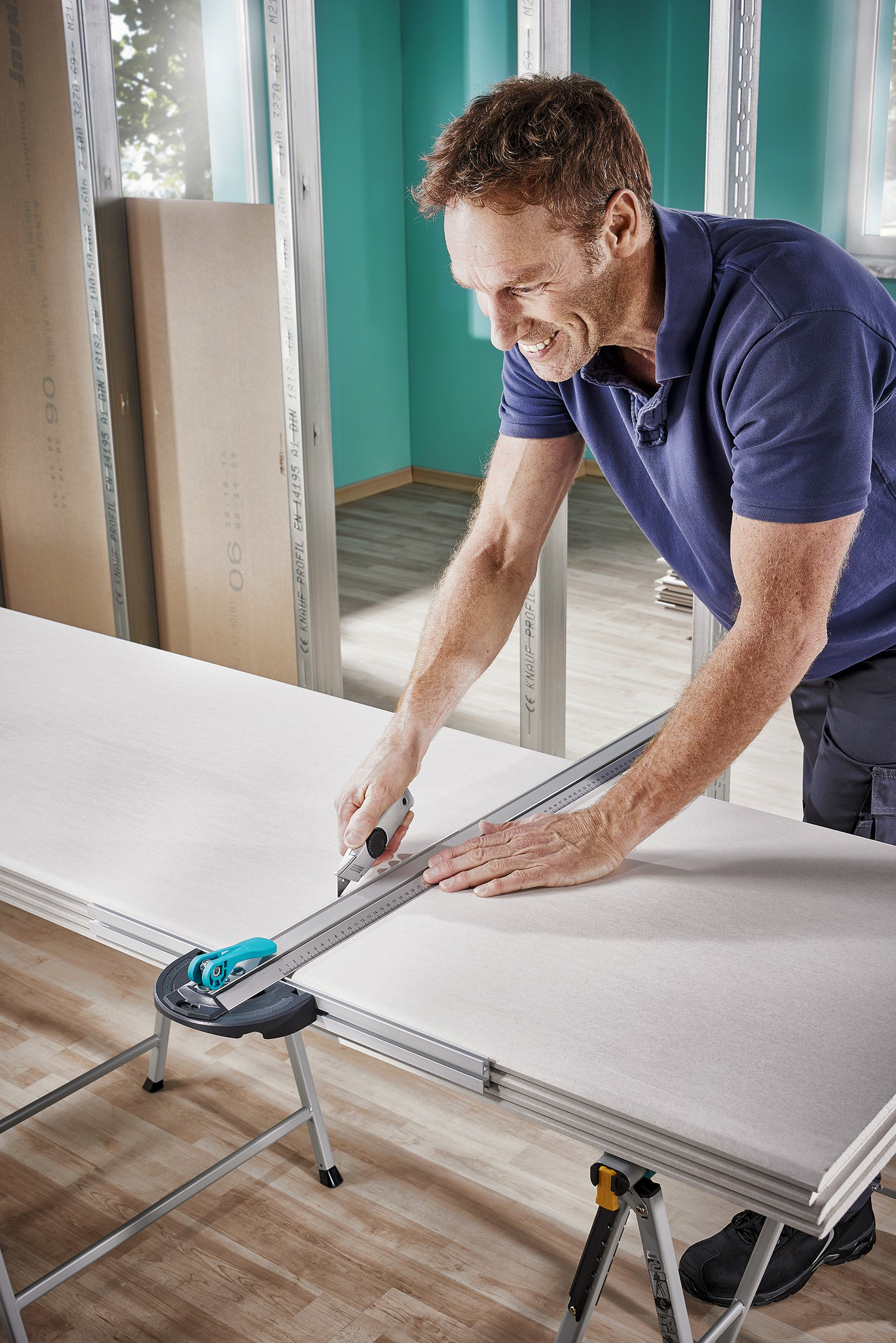

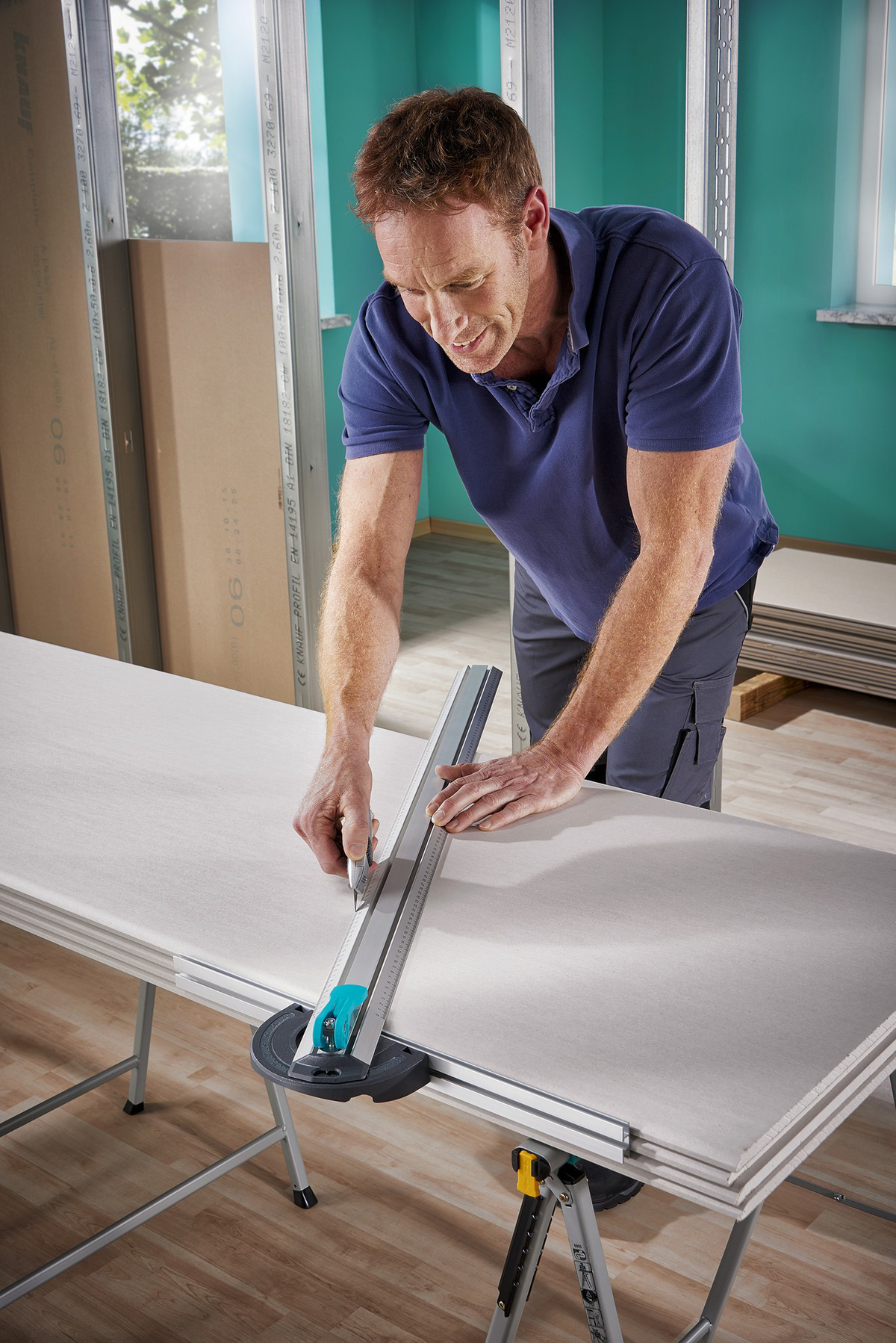

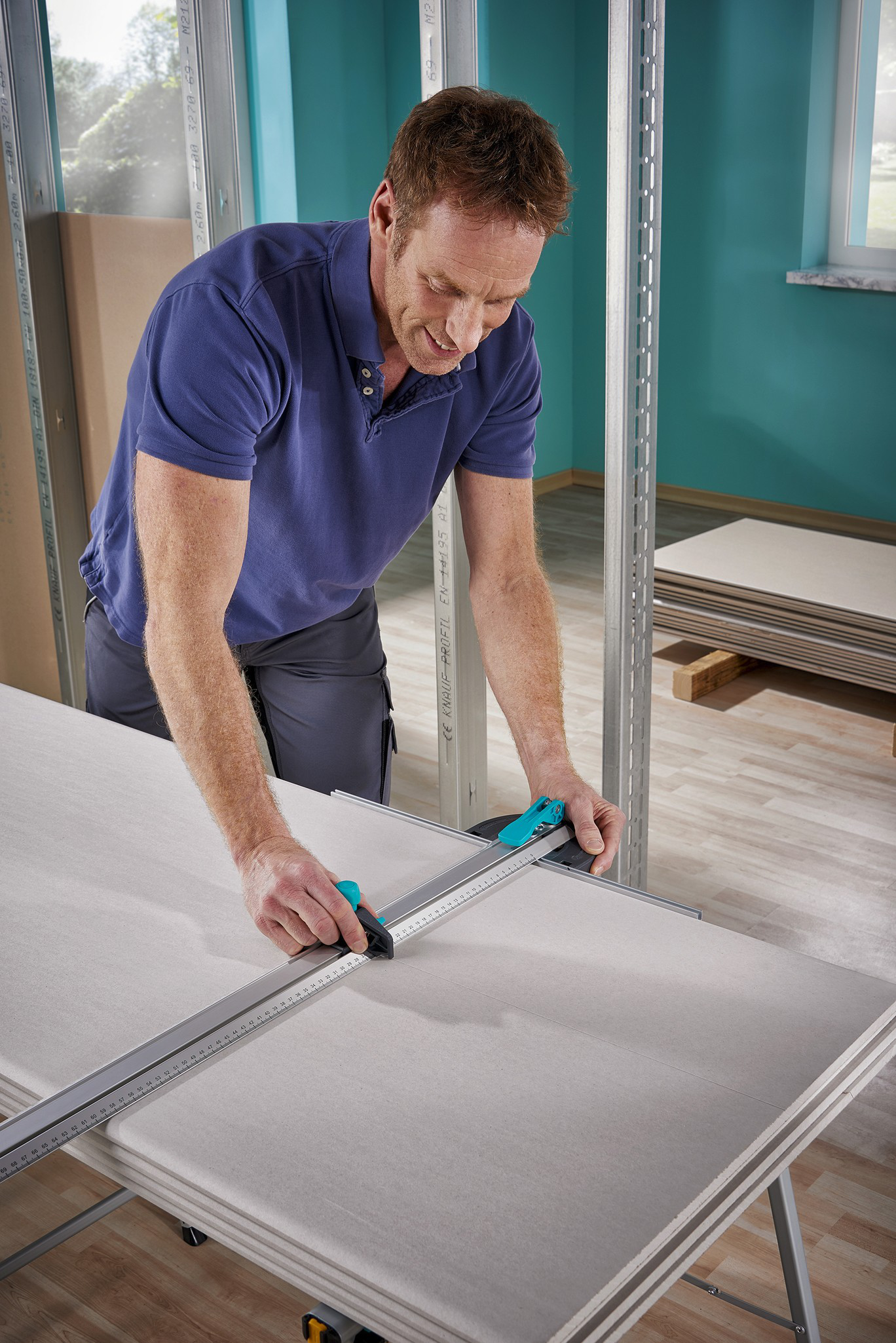

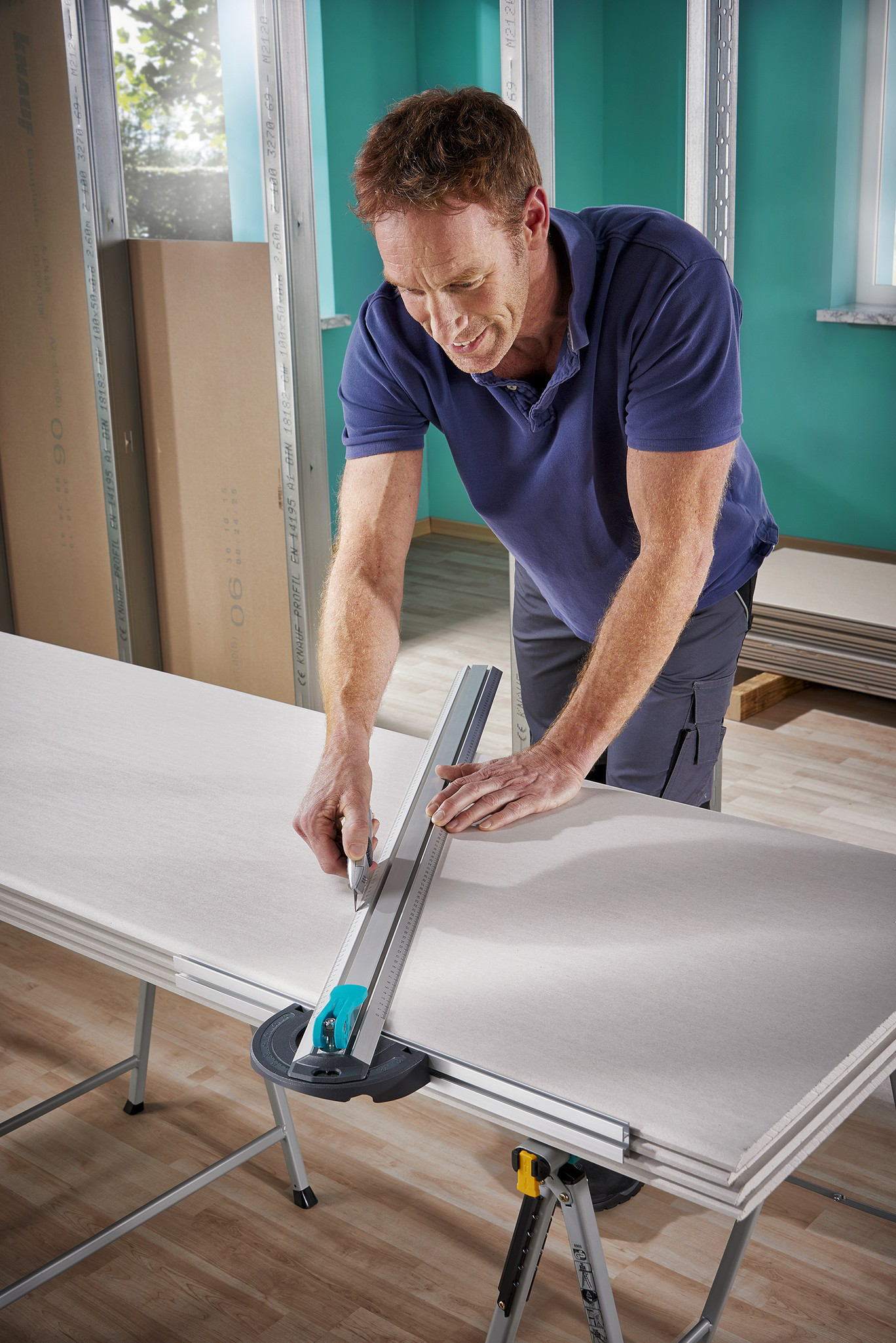

The T-square and parallel cutter makes cutting gypsum plasterboard easy and precise. Clean results in just 3 steps: score along a guide edge, break, cut through the cardboard layer – done. The moving T-square with angle function and the easily legible scale guarantee precision guidance at exactly the right angle. As a result, precise cut edges are possible in series, which will make subsequent filling and sanding work much easier. The accompanying parallel and strip cutter is fitted with a high-performance trapezium blade. Simply push it onto the cutter carriage and lock it, and it will ensure guided cuts in series: extend the blade, guide over the entire board using the T-square, break the board and cut off with the cutter knife.

Scope of delivery
1 parallel and strip cutter
1 trapezium blade 52/0.50 mm

Technical Data

Cutting width, max.	970 mm
Cutting length, max.	1,000 mm
Angle min - max	0 – 180 °

Spare Parts

119904008 - Parallel cutter assembly group 4008

116410164 - Stop rail 4008

116410163 - T-guide rail profile 4008
