- Euronorm mount for mains-operated power drills with a collar diameter of 43 mm
- easy fastening of the drill with a metal tommy screw
- heavy, stable grey cast iron plate (307 x 203 mm) with sturdy Ø 40 mm round column for secure stand
- mounted rack and two integrated threaded screws for precise, play-free adjustment and handling of the upper part
- three-arm feed lever and return spring for easy and ergonomic lowering and retracting of the drill
- depth stop with quick-release mechanism and a finely graduated scale ring for millimetre-accurate adjustment of the drilling depth
- convenient and fast adjustment of height and depth stop without needing tools
- The large worktop (240 x 196 mm) features clamping grooves for easily fastening clamping blocks or vices
- drill chuck guard for protection against accidental contact with the rotating chuck
- cable holder ensures safe routing of the drill’s power cord
PRO Drill Stand
The sturdy solution for controlled, depth-restricted drilling, ideal for drilling series of holes
- Euronorm mount for mains-operated power drills with a collar diameter of 43 mm
- 130 mm throat clearance and 80 mm stroke
- Ø 40 mm round column
Regular price
119,00€
inc. VAT
A minimum order value of 20,00 € applies to all purchases.
FREE shipping from 49,00 € of purchase.
FREE Returns for 14 days.
Couldn't load pickup availability

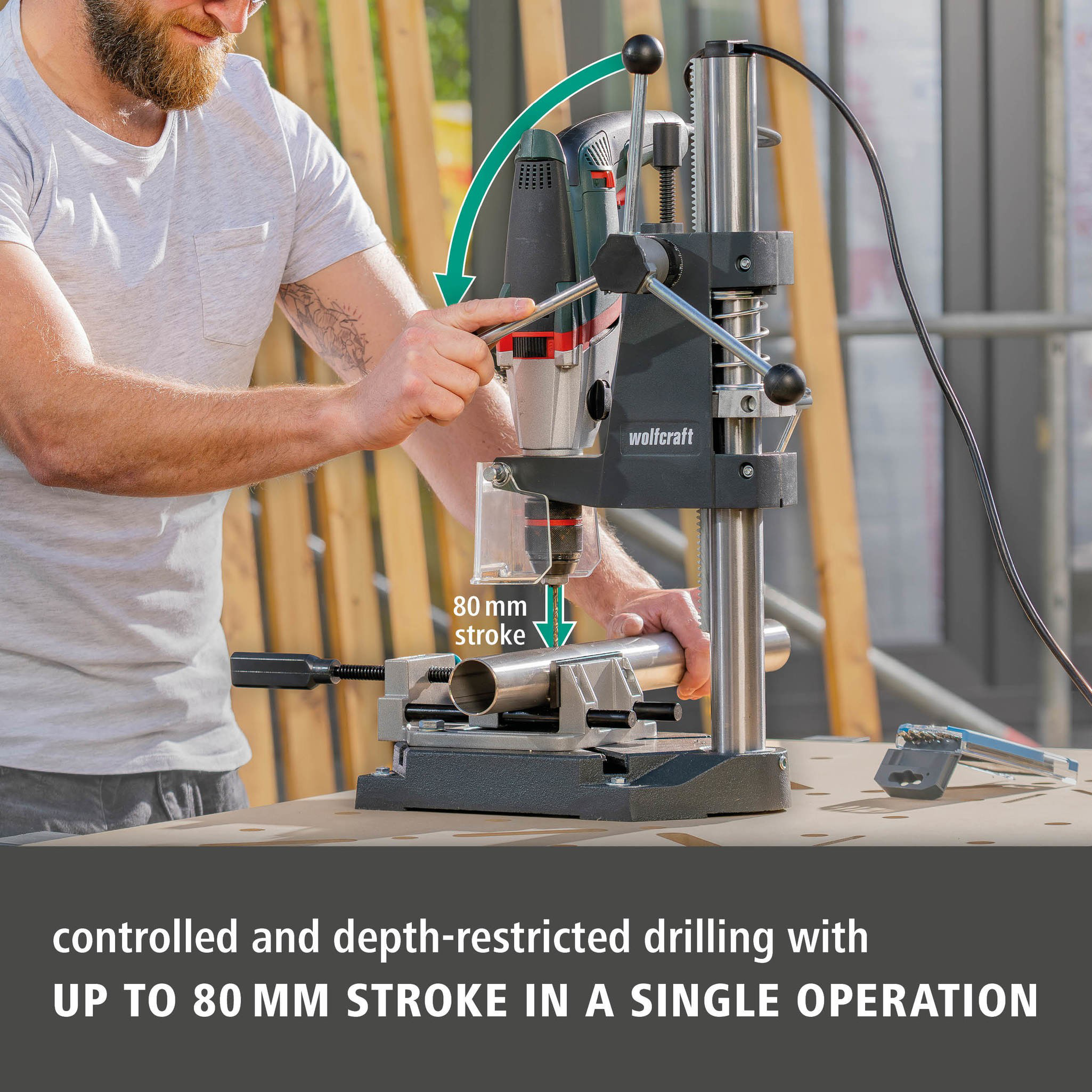

PRO Drill Stand for controlled, depth-restricted drilling with 130 mm throat clearance and a stroke of up to 80 mm, ideal for drilling series of holes
The PRO Drill Stand is a sturdy and professional solution for controlled, depth-restricted drilling. With 130 mm throat clearance and up to 80 mm stroke, it is ideal for controlled drilling of series of holes. Thanks to its Euronorm collar, it is compatible with all commercially available power drills that have a Ø°43°mm Euronorm neck.
The heavy cast-iron base and sturdy Ø 40 mm round column ensure a stable working position, while the mounted rack and two integrated threaded screws provide precise, play-free adjustment and handling of the upper part.
The three-arm feed lever and return spring make lowering and retracting the drill easy and ergonomic.

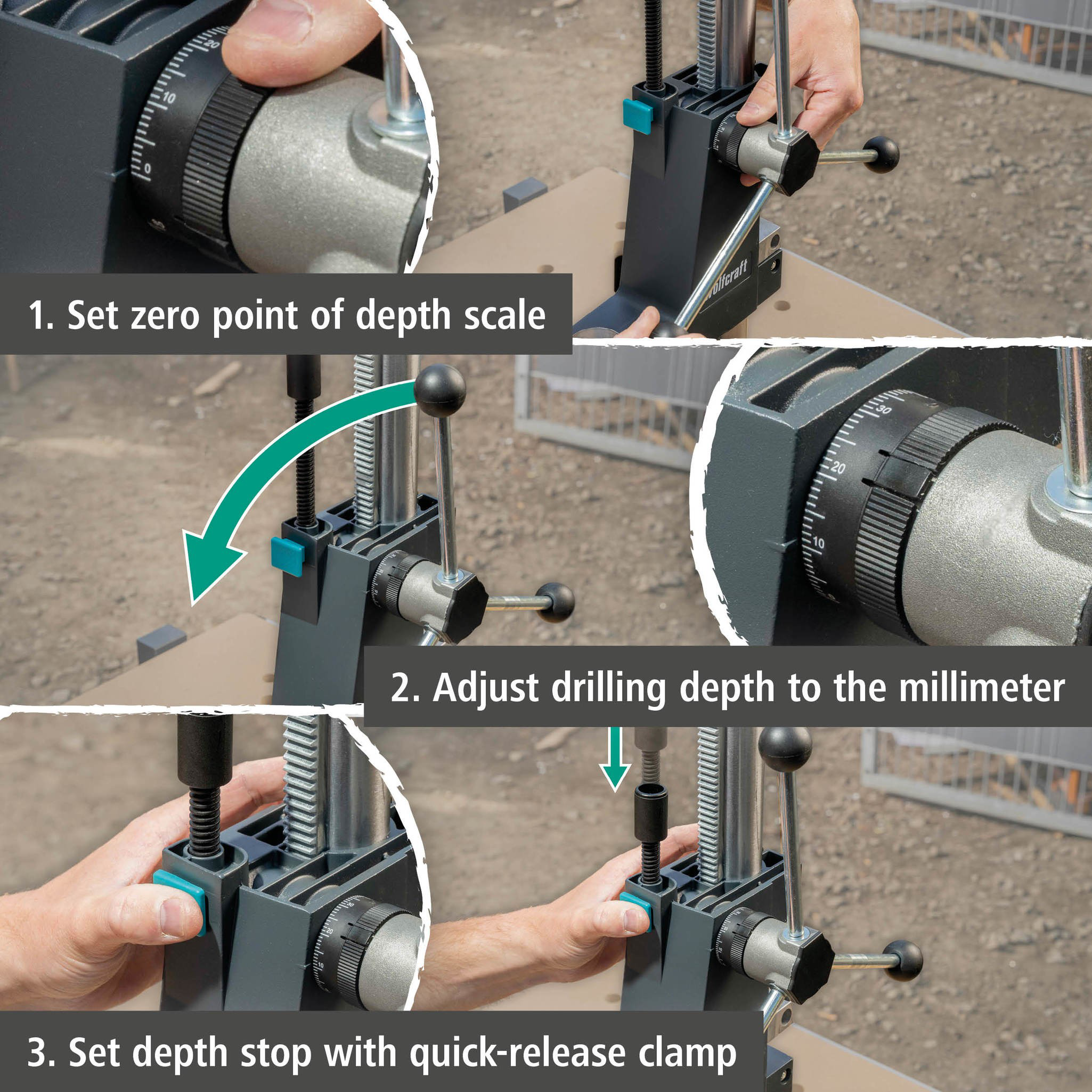

The depth stop is equipped with a quick-release mechanism and a finely graduated scale ring, enabling precise, millimetre-accurate adjustment of the drilling depth without the need for tools.

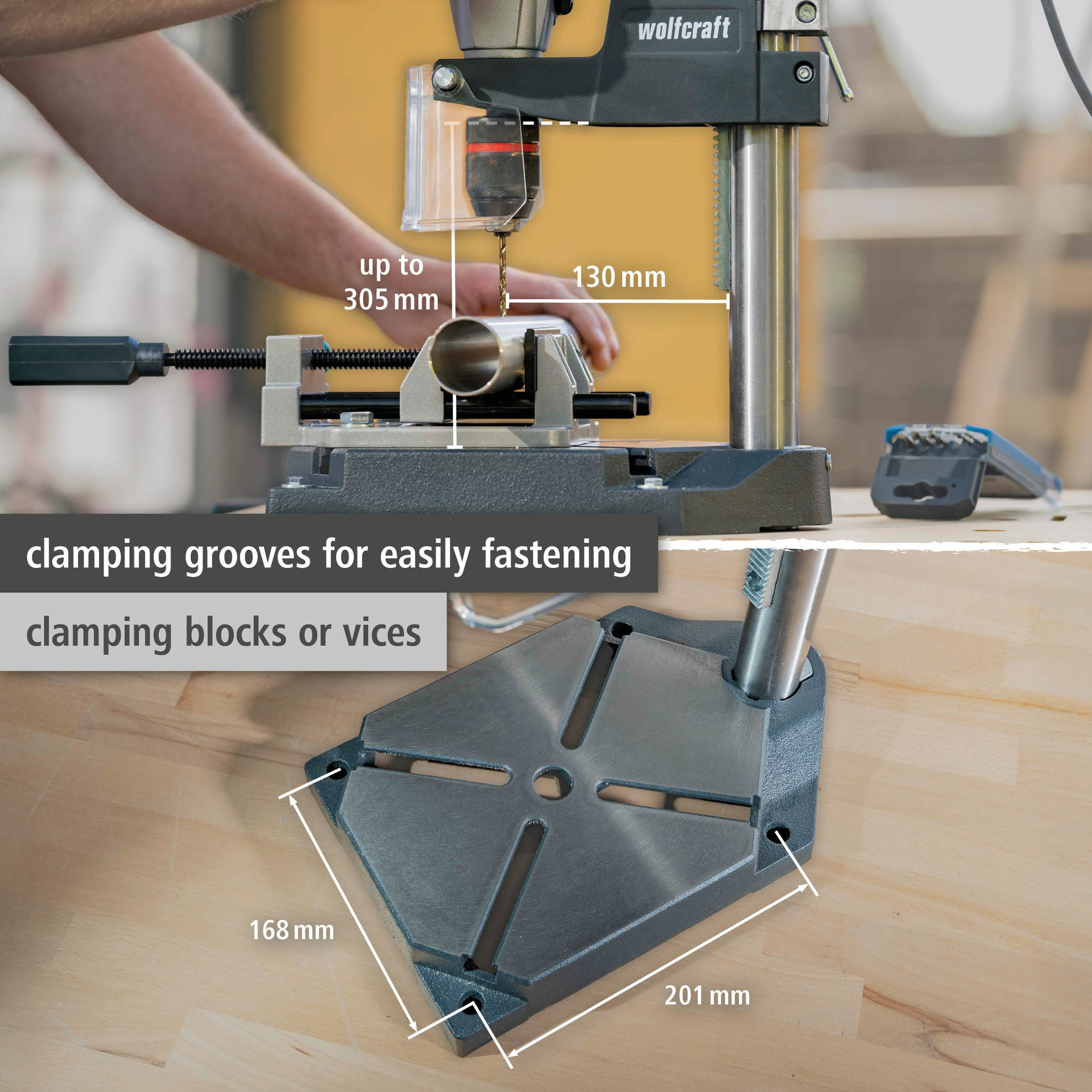

The large worktop features clamping grooves for easily fastening clamping blocks or vices.

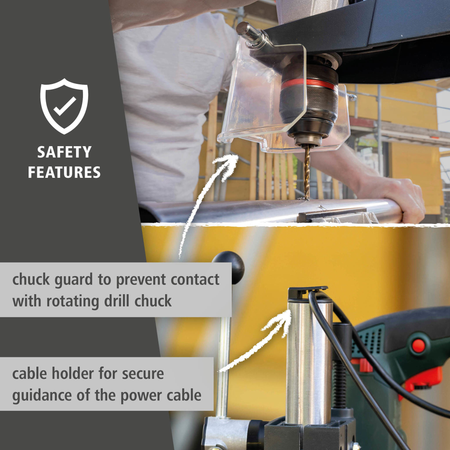

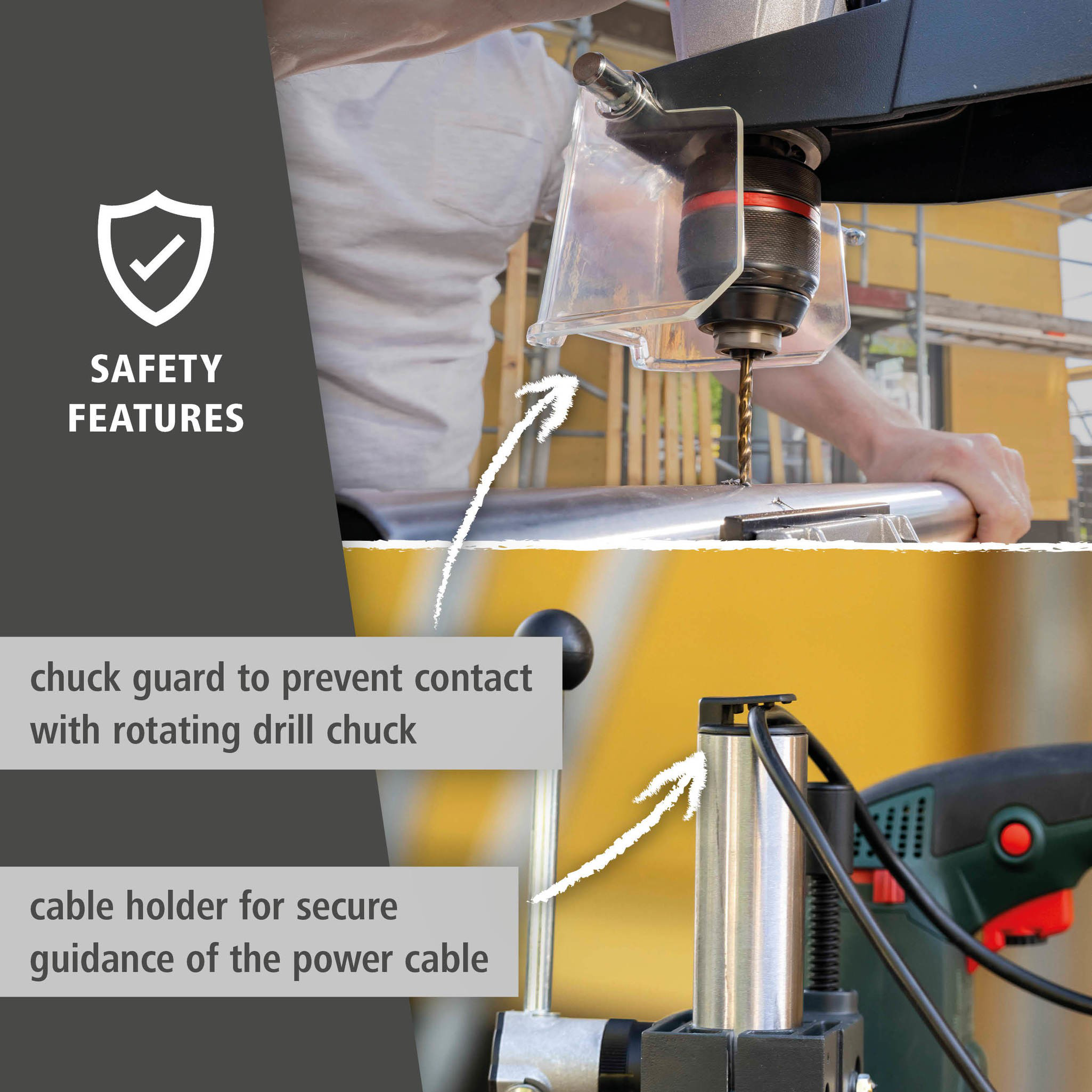

A chuck guard and integrated cable holder ensure safe operation.
The heavy cast-iron base and sturdy Ø 40 mm round column ensure a stable working position, while the mounted rack and two integrated threaded screws provide precise, play-free adjustment and handling of the upper part.
The three-arm feed lever and return spring make lowering and retracting the drill easy and ergonomic.
The depth stop is equipped with a quick-release mechanism and a finely graduated scale ring, enabling precise, millimetre-accurate adjustment of the drilling depth without the need for tools.
The large worktop features clamping grooves for easily fastening clamping blocks or vices.
A chuck guard and integrated cable holder ensure safe operation.
| Product dimensions (W x D x H) | 203 x 307 x 565 mm |
| Product weight | 7.3 kg |
| Working heights | 305 mm |
| Clearance | 130 mm |
| Material | Die-cast aluminium Steel Plastic |
| Additional product specification | working stroke max. 80 mm column diameter 40 mm dimensions of base plate: 203 x 307 mm Worktop dimensions: 196 x 240 mm |
Mounting material not included (screws for wolfcraft vices on wolfcraft drill stands: M10 x 30; screws for securing the drill stand to a base: max. M10).
