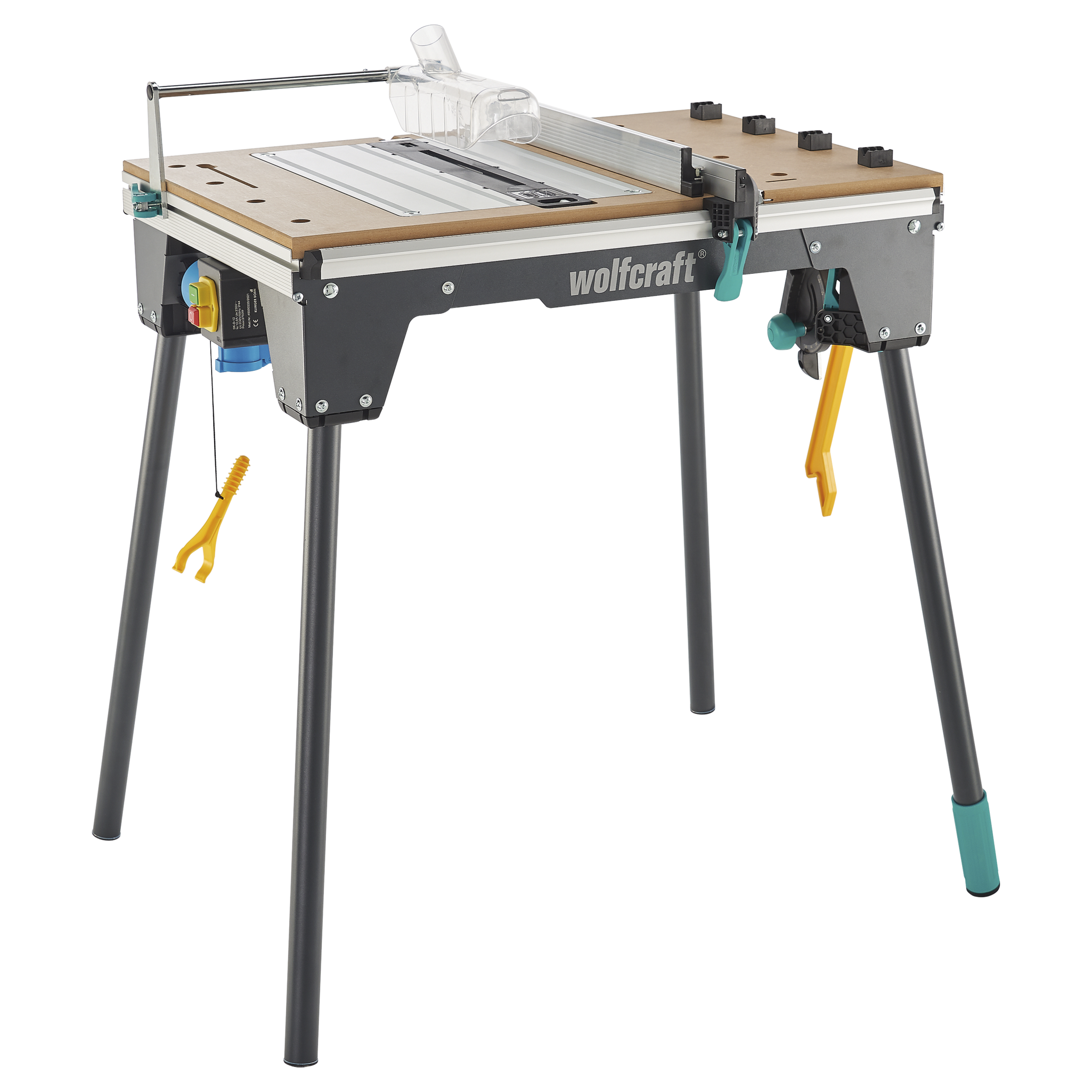

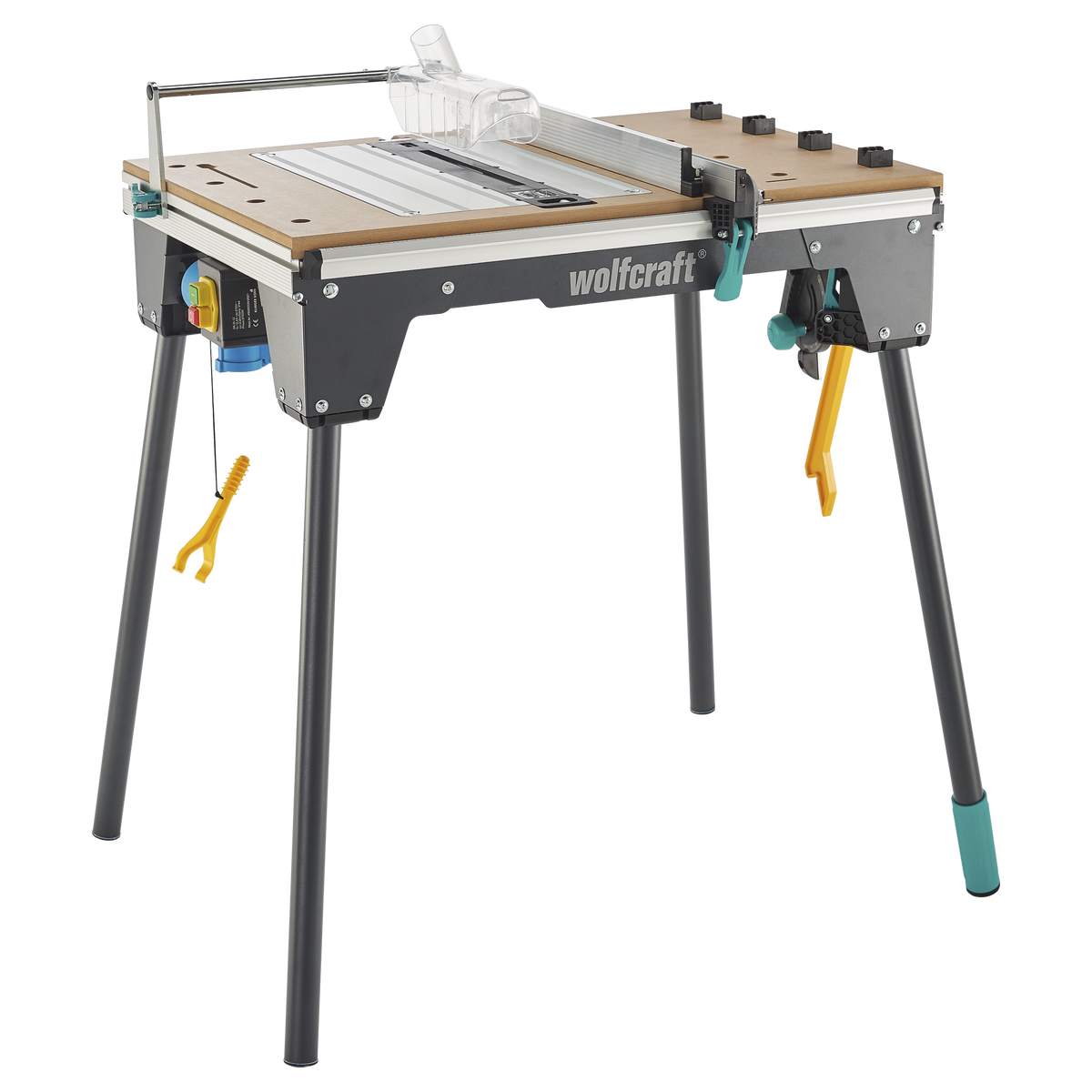

Machine Table MASTER cut 2200

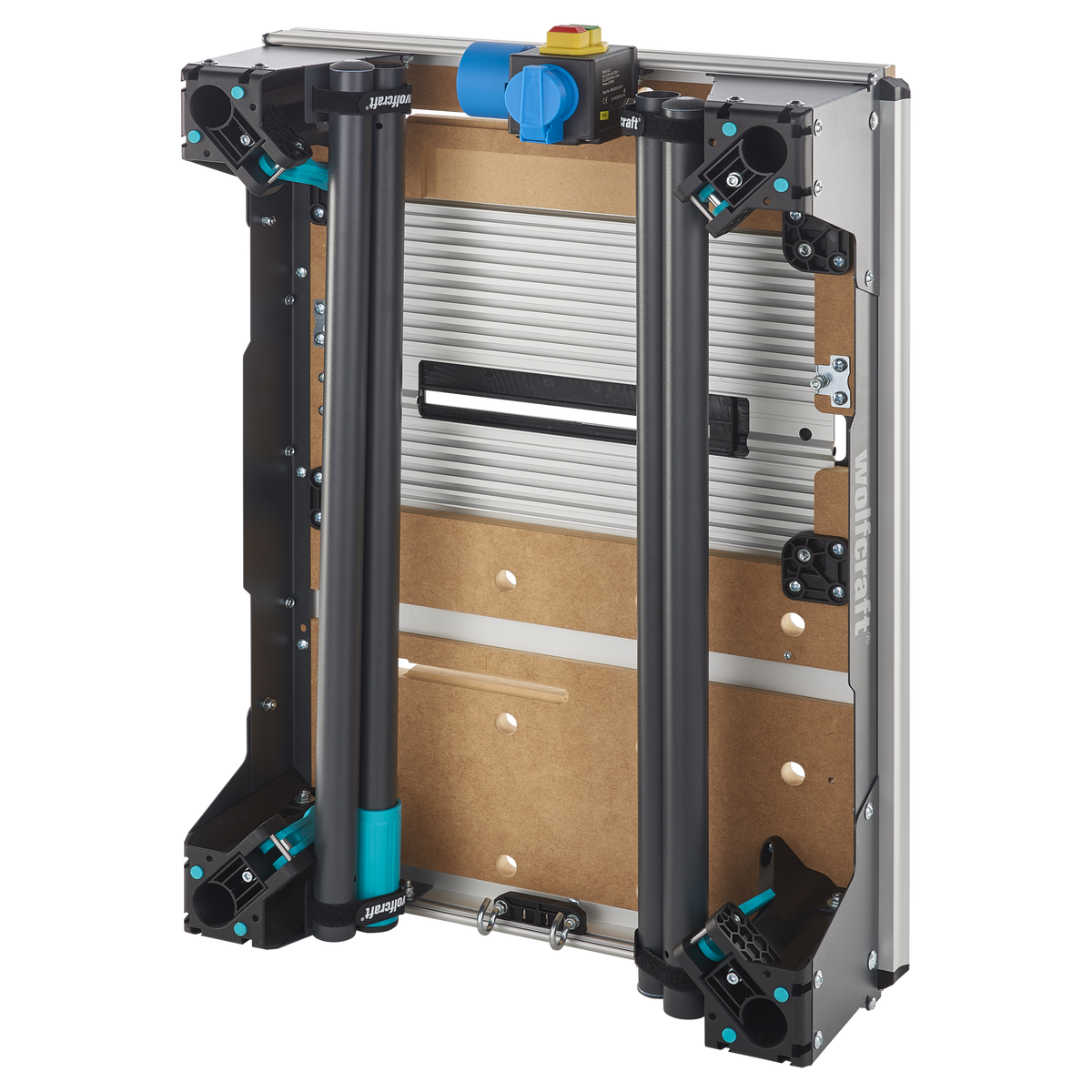

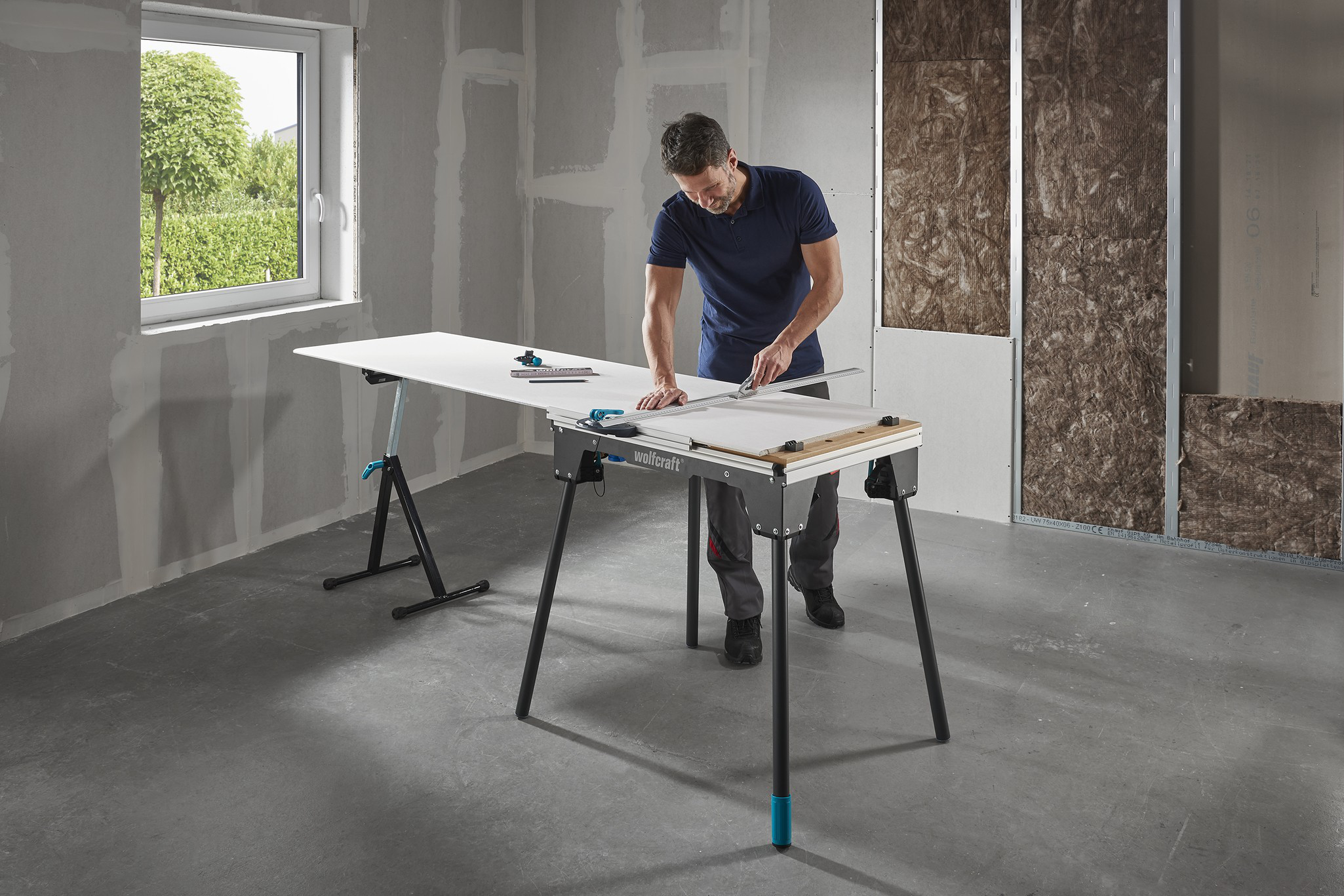

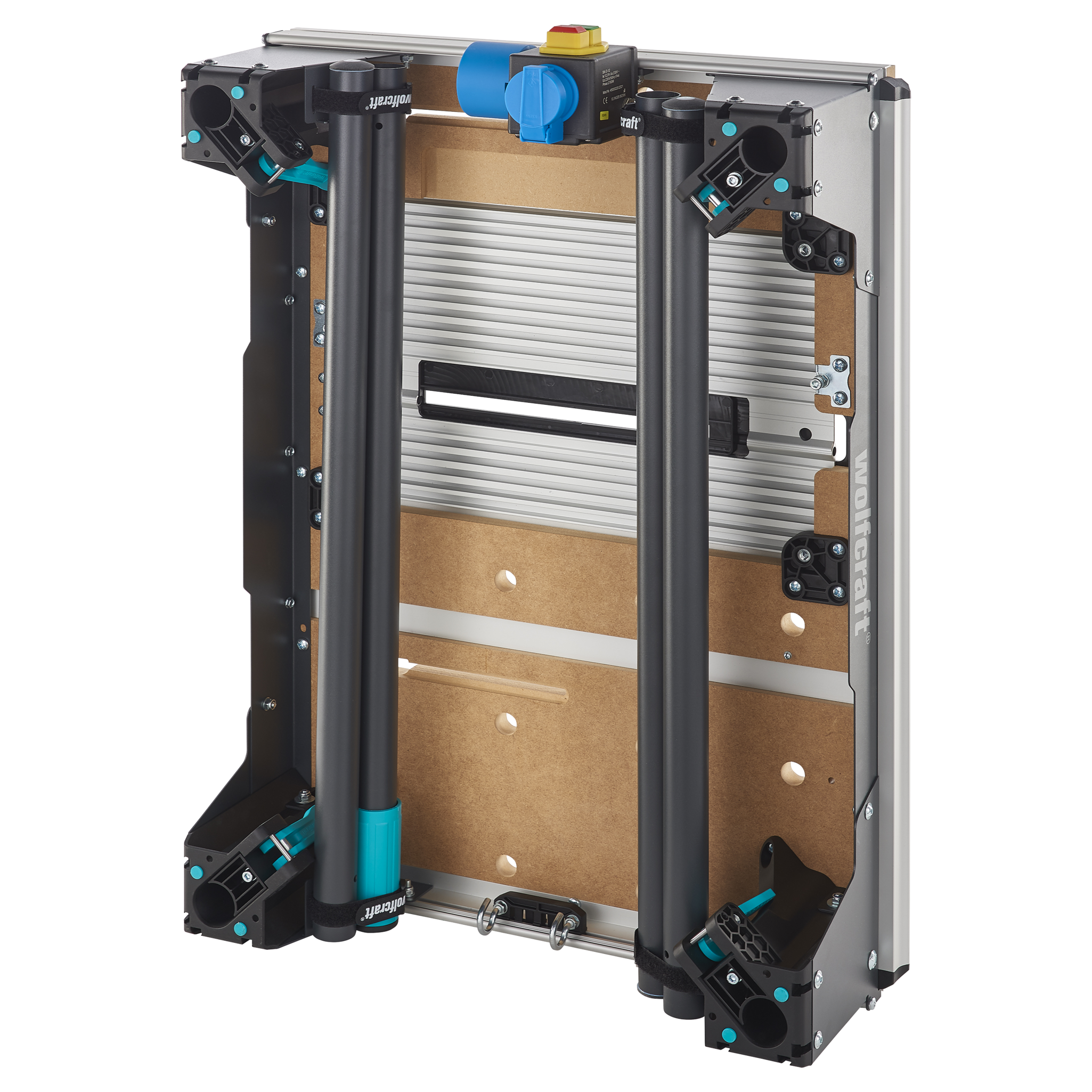

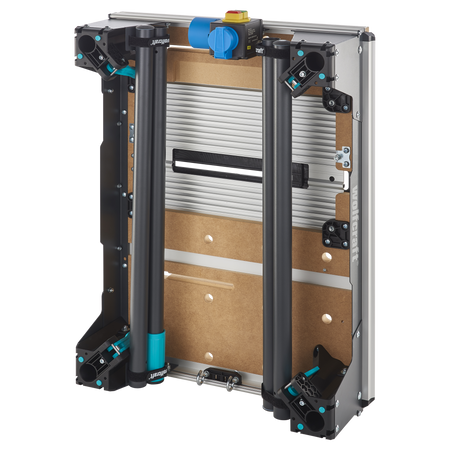

The compact MASTER cut 2200 machine table combines four functions in one product. It can be used as a circular bench saw, jigsaw table, work station and – with the optional accessories – as a milling table. Thanks to its very compact transport size of 800 x 580 x 200 mm and its low weight of 17 kg, it is mobile, can be used anywhere and is space-saving to store. The legs can be attached and detached flexibly by means of a push-in mechanism with quick-lock cam lever, e.g. for transport or working on the ground. After the legs have been detached, they can be stored in the retaining lugs underneath the tabletop, where they can be secured with hook-and-loop straps.

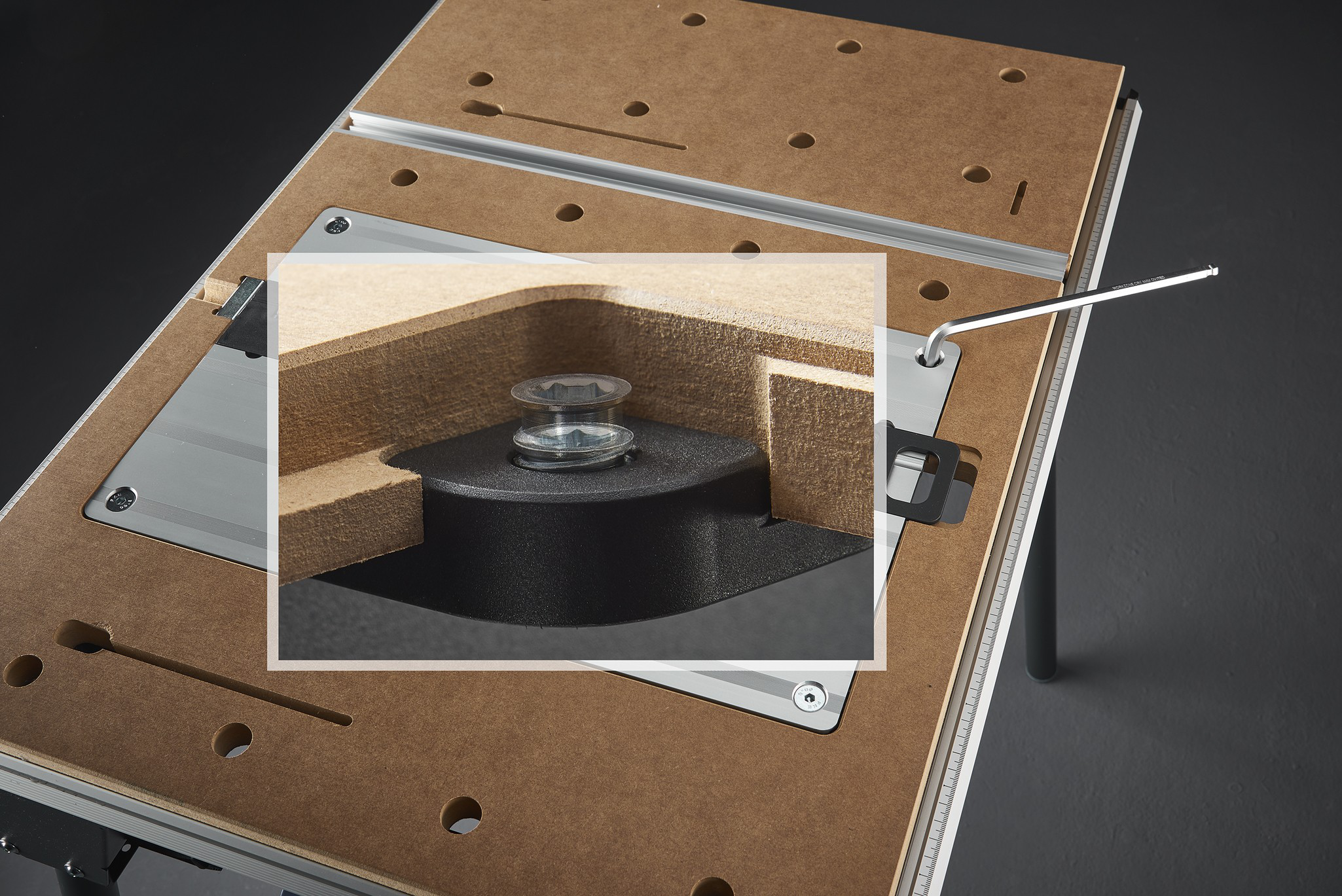

Thanks to the removable riving knife (available separately), the MASTER cut 2200 is one of the few machine tables that you can also use with circular handsaws that do not have a riving knife. The machine plate is equipped with a safety lock that secures the plate and the tool reliably. It is also height-adjustable, offering you a flat transition to the worktop even with heavy equipment. The MASTER cut 2200 is compatible with many commercially available tools, regardless of the manufacturer.

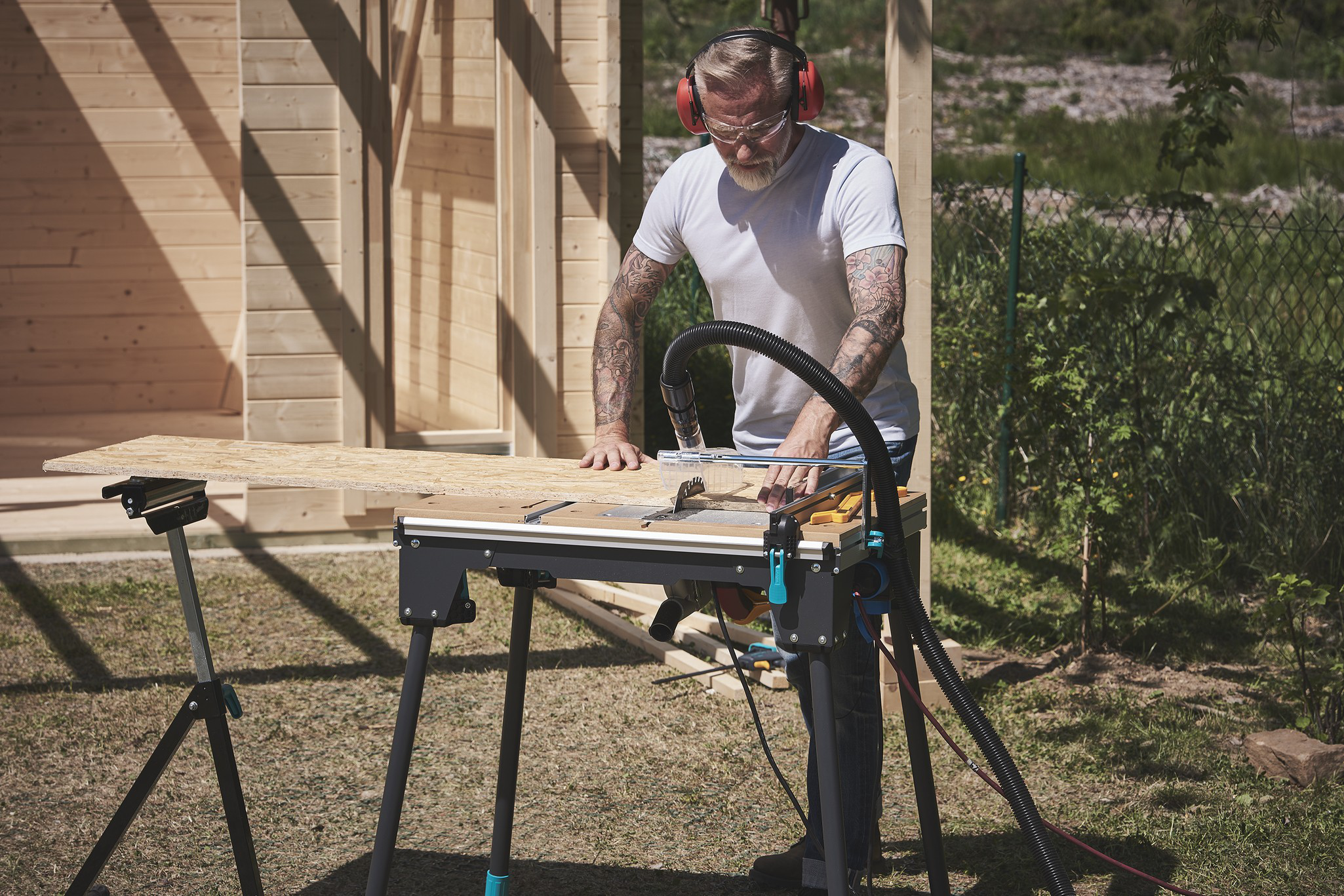

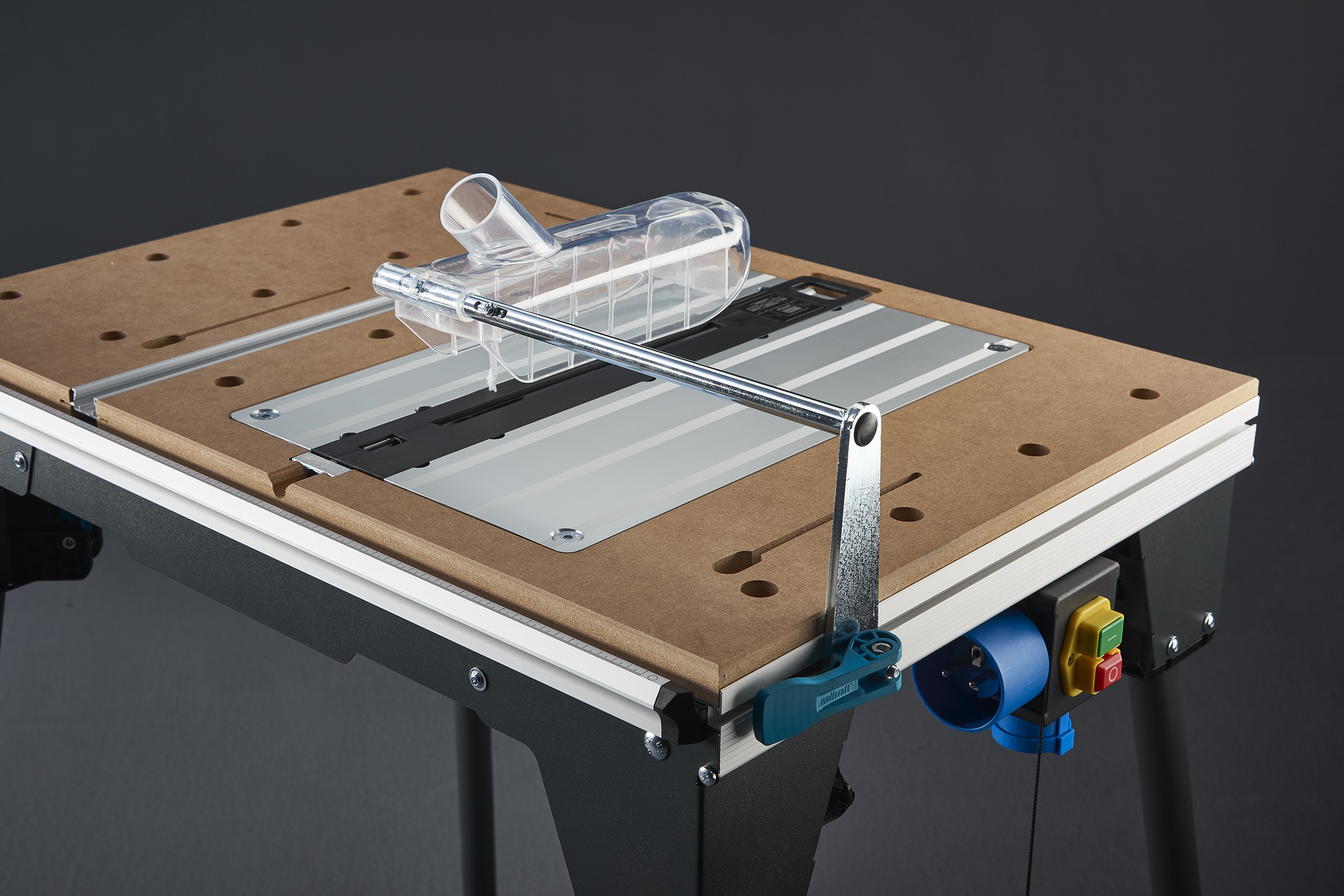

The safety switch is positioned on the side of the table so you can switch your tools on and off quickly and safely. When the table is used as a circular bench saw, the parallel stop – which can be clamped in on both sides – permits guided cuts up to a cutting width of 370 mm. The angle stop is equipped with spring-guided compensation and gliding elements. You can easily use it for angular cuts of up to +/- 60°, including a series of repeated cuts. The adjustable safety shield with connection for vacuum cleaners helps to make the work safe and dust-free.

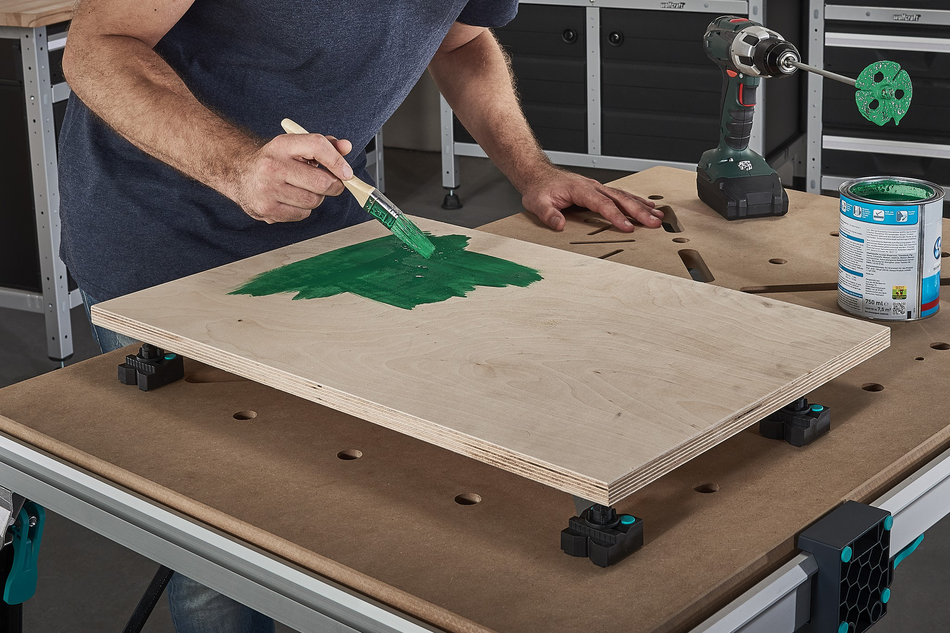

Four stoppers with 20 mm receptacles limit the possible movement of workpieces during machining. For applications that require clamping, the 20 mm bore holes in the tabletop are ideal, for example for using a work table clamp (art. no. 3036000).

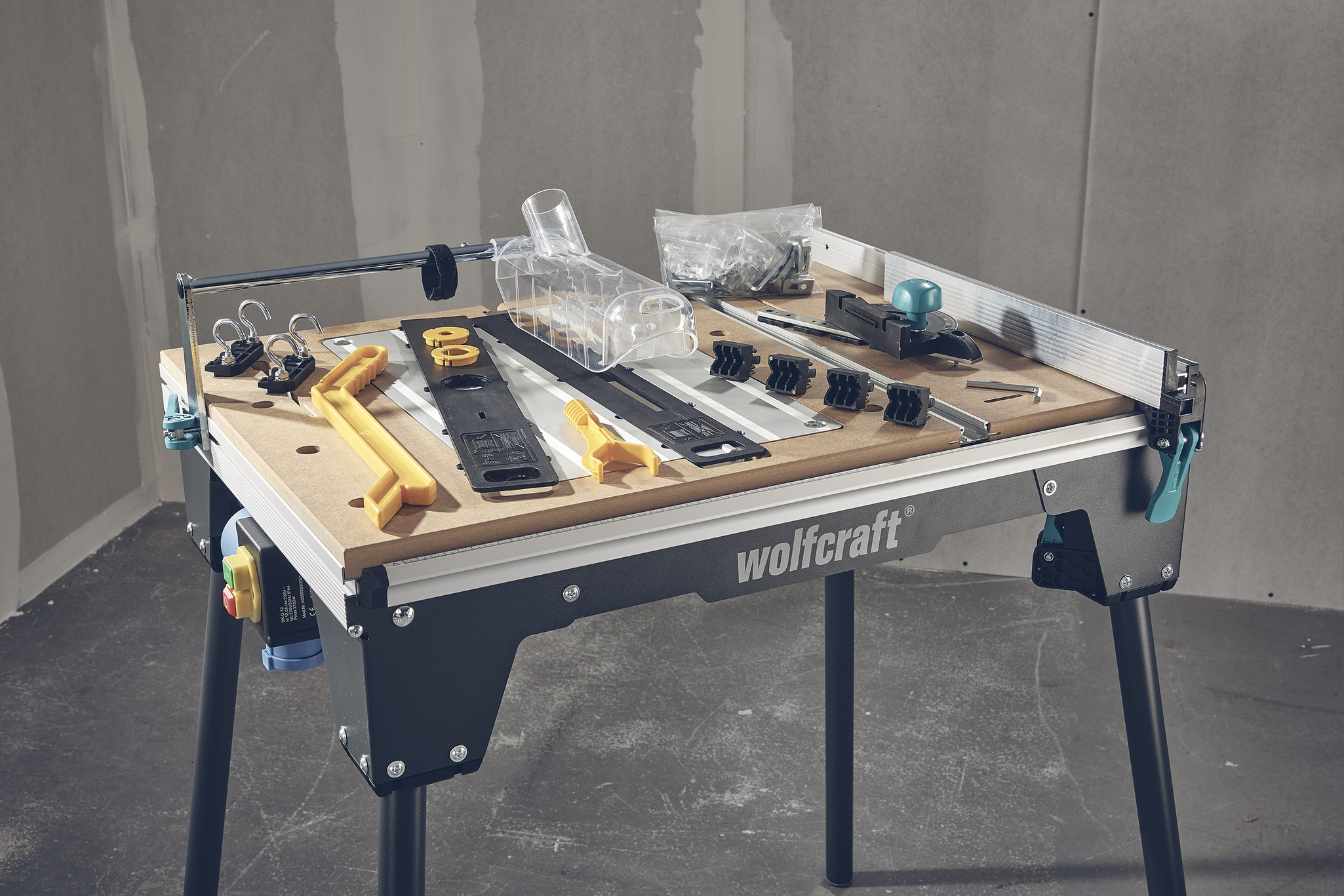

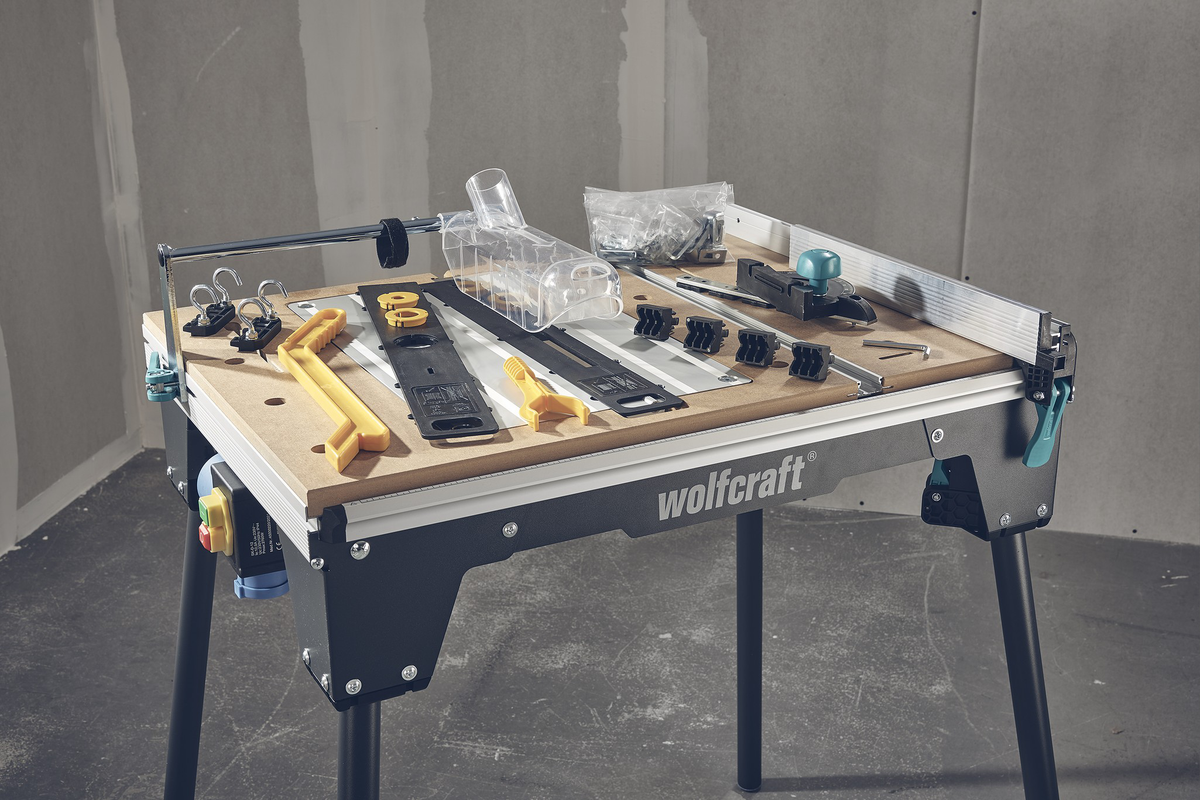

In the tabletop, there is a receptacle for the supplied hexagonal socket key. The MASTER cut 2200 is equipped with hooks for hanging up the supplied accessories, such as the push stick or angle stop, so that they are readily at hand when needed. These are attached to the inside of the profile, to make free-standing storage of the table possible.
The machine table can hold even massively large workpieces with ease, thanks to its load capacity of up to 120 kg. Thanks to the sturdy base frame made of painted steel and aluminium, the table has a very stable and secure stand when in use. The feet made of 2-component plastic optimally prevent the table from slipping.
With the MASTER cut 2200, you are reliably and effectively prepared for countless challenges in many locations – 4 functions in one table, with minimal space requirements for storage and transport.

Product dimensions (W x D x H)	915 x 700 x 860 mm
Dimensions of folded product	800 x 580 x 200 mm
Product weight	17 kg
Worktop	780 x 540 mm
Working height	860 mm
Table plate material	MDF, aluminium
Base frame material	Steel Aluminium
Load capacity	120 kg
Additional product specification	max. height of the workpiece for the circular saw bench function: 57 mm max. cutting width with parallel stop as table saw: 370 mm diameter of clamping holes 20 mm hole spacing on worktop 128 mm

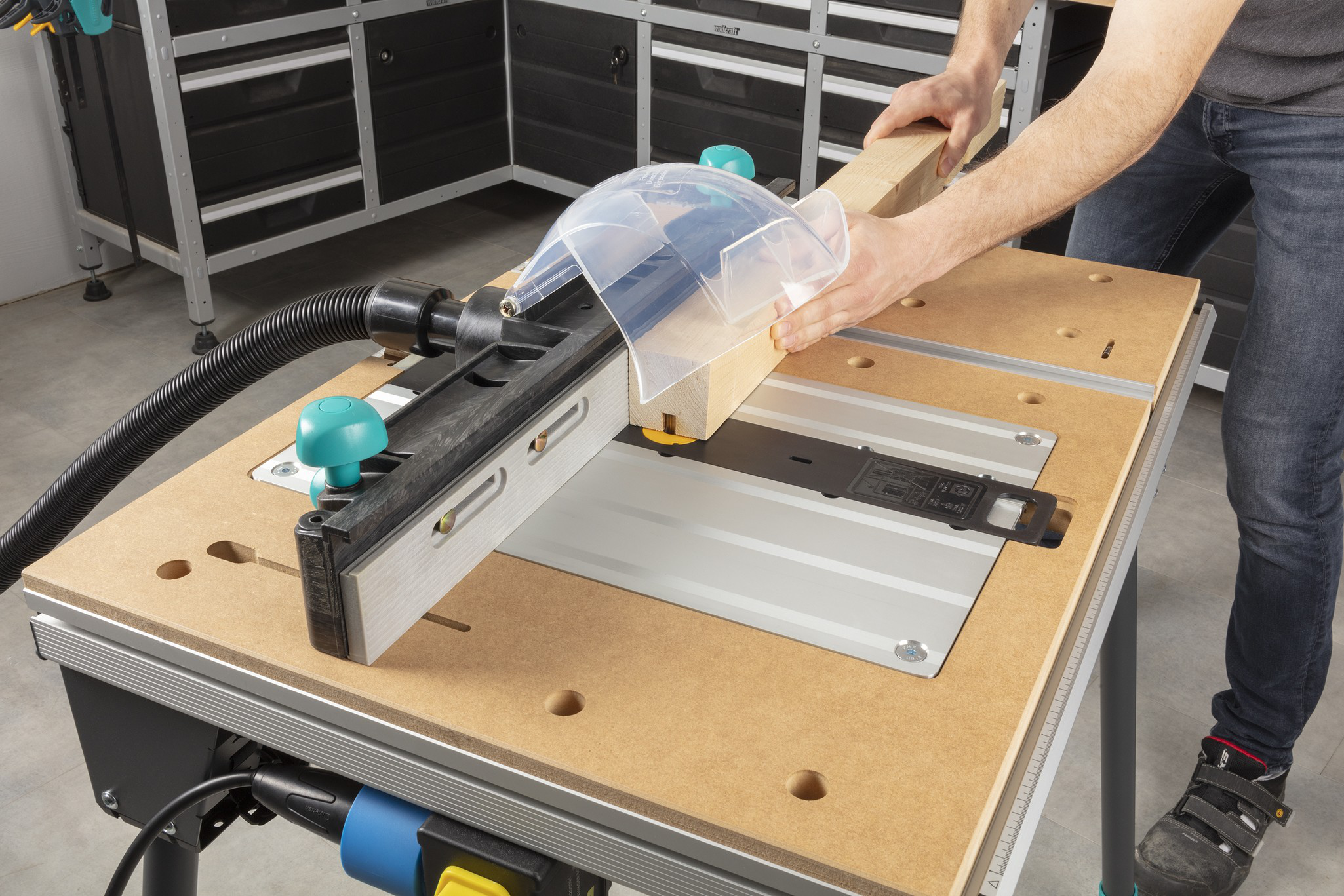

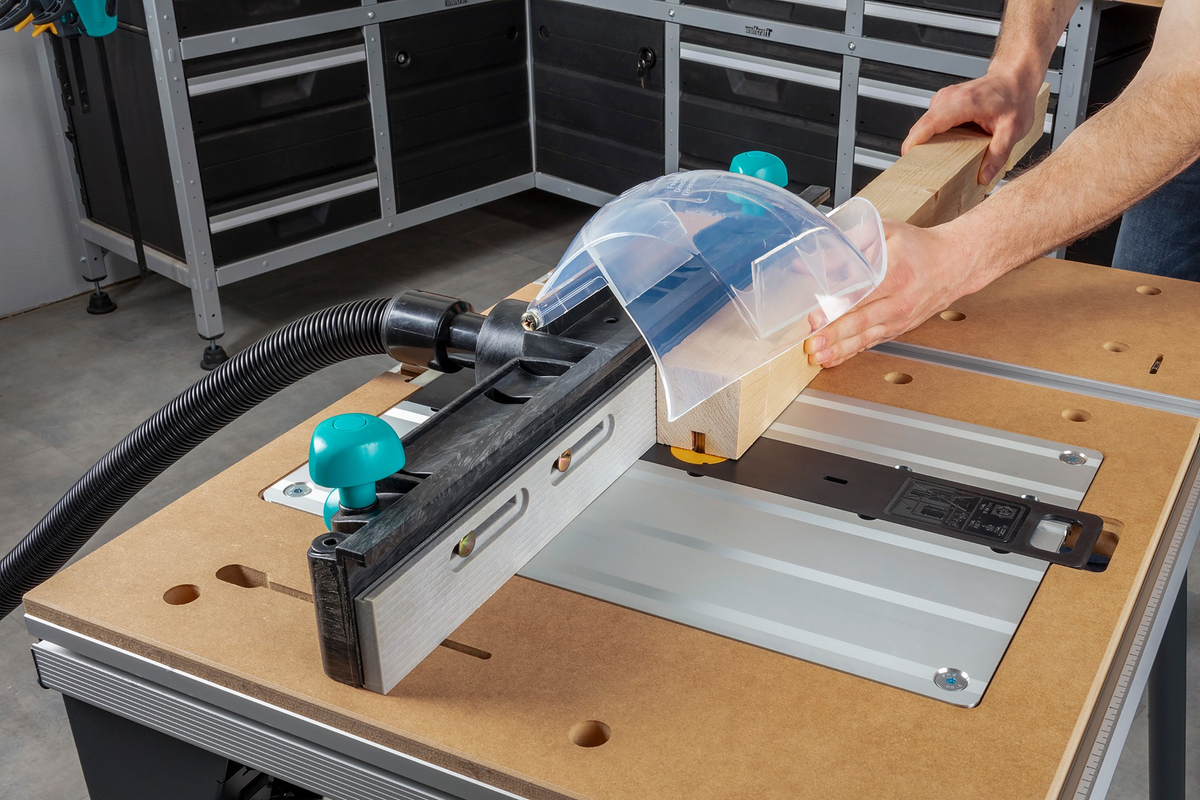

Machine area of working tables	for circular handsaws with riving knife, up to a maximum cutting depth of 70 mm, blade diameter of 200 mm, a base plate of max. 240 x 360 mm and a distance from the blade to the end of the motor housing of max. 225 mm; must only be used with appropriate knife insert. circular handsaws that do not have a riving knife can only be used in combination with riving knife art. no. 6916000 (up to max. 159 mm blade diameter) or riving knife art. no. 6917000 (from 160 up to max. 200 mm blade diameter). for routers with max. 230 V, max. 1,800 W, max. base plate diameter: 180 mm; max. base plate height: 40 mm; for max. router bit diameters of 27 mm; must only be used with parallel milling guide (art. no. 6901000). for jigsaws with a base plate of max. 90 x 200 mm cordless tools and machines with electronic start-up protection are not permitted; refer to the operating instructions of the machine manufacturer for the relevant information
