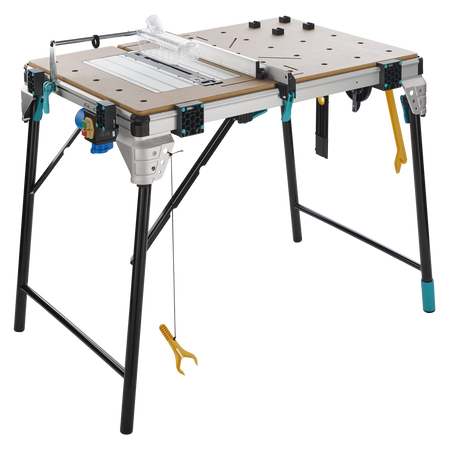

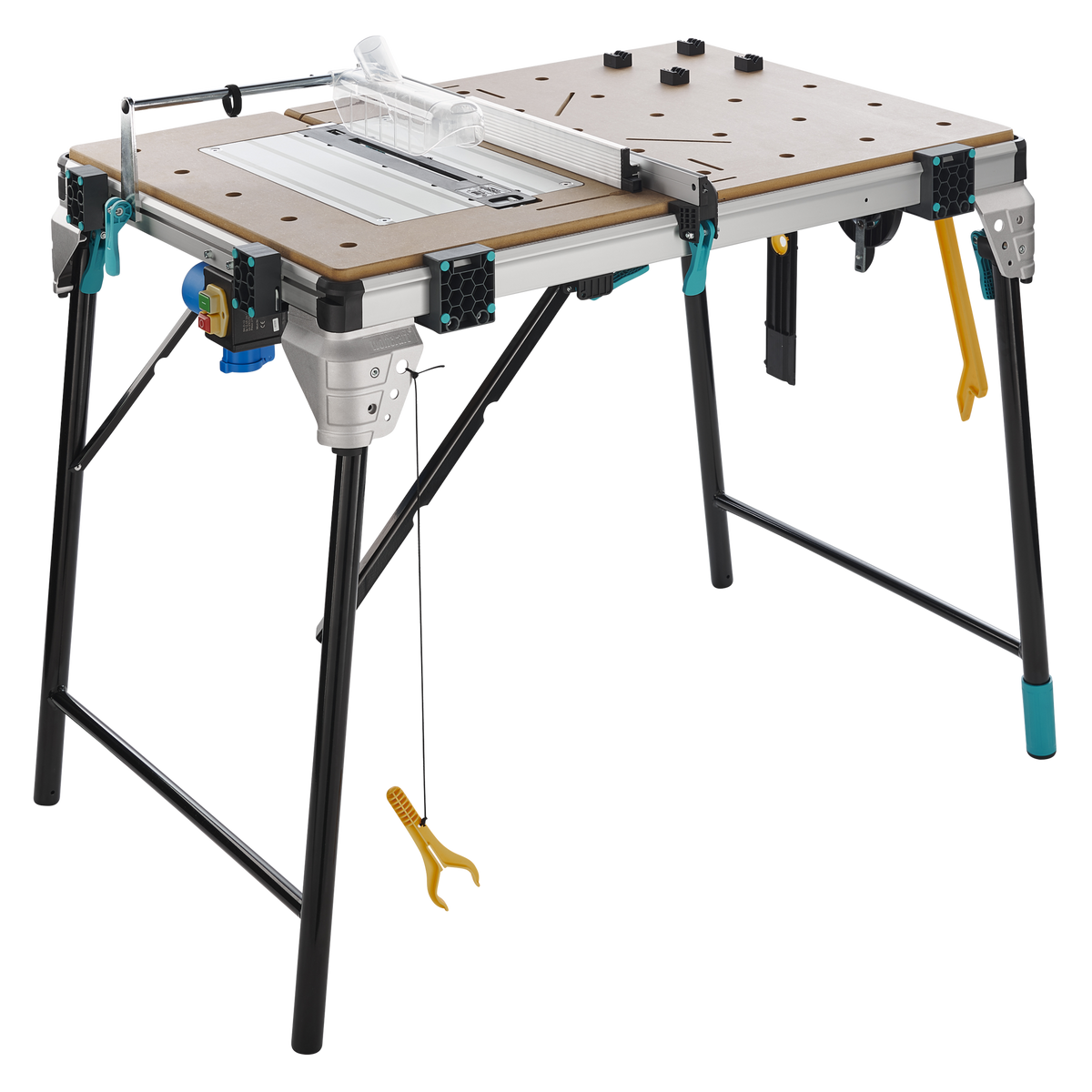

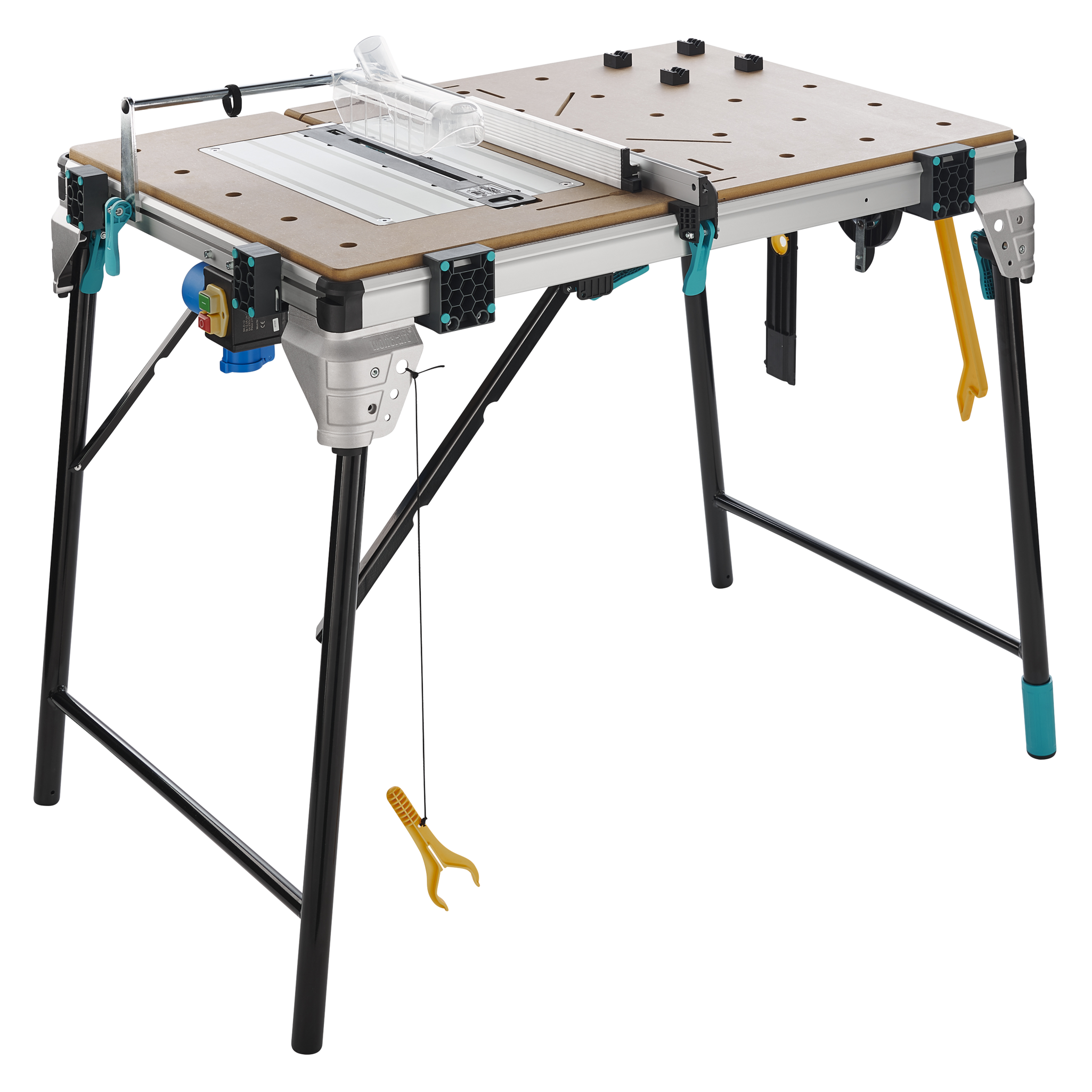

Machine Table MASTER cut 2600

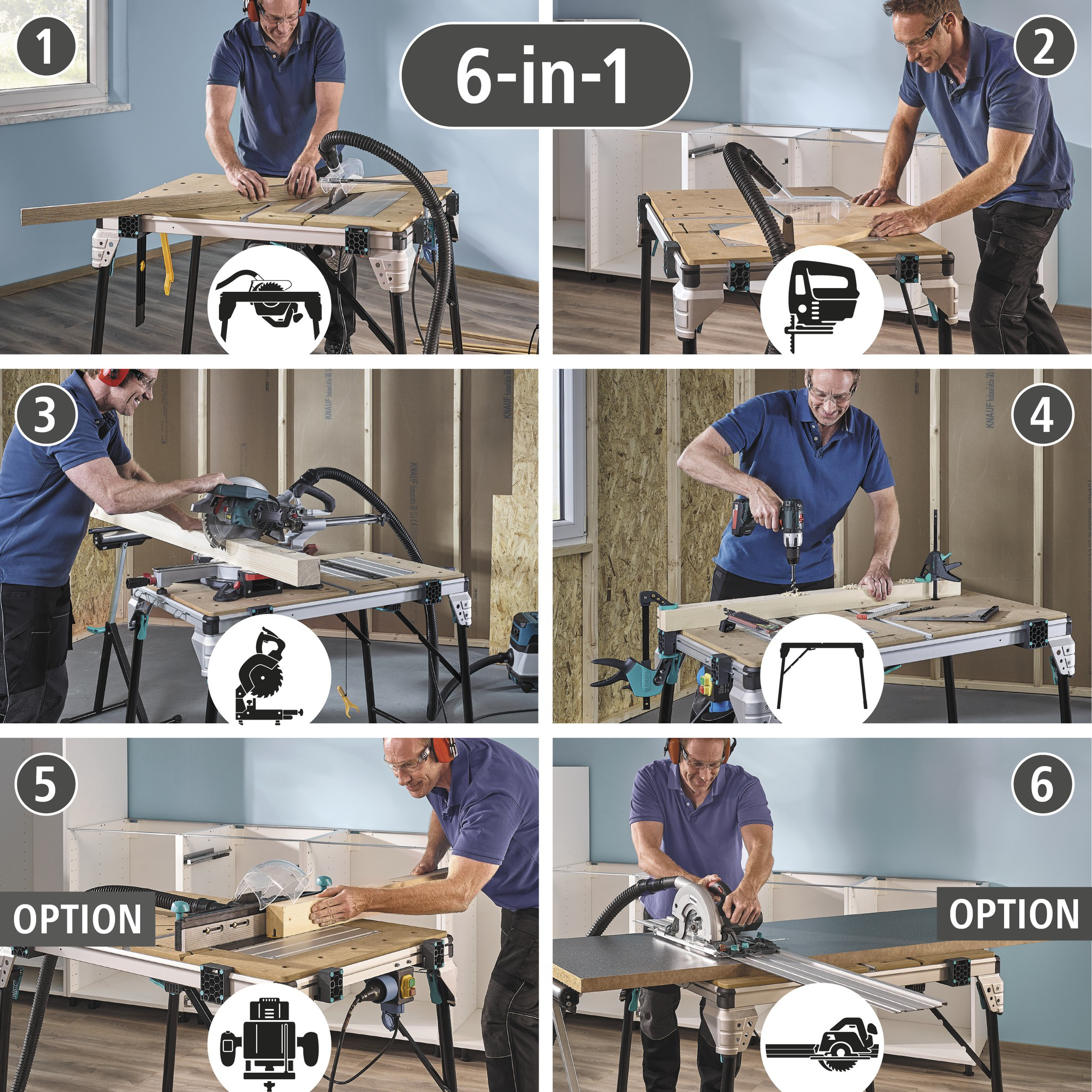

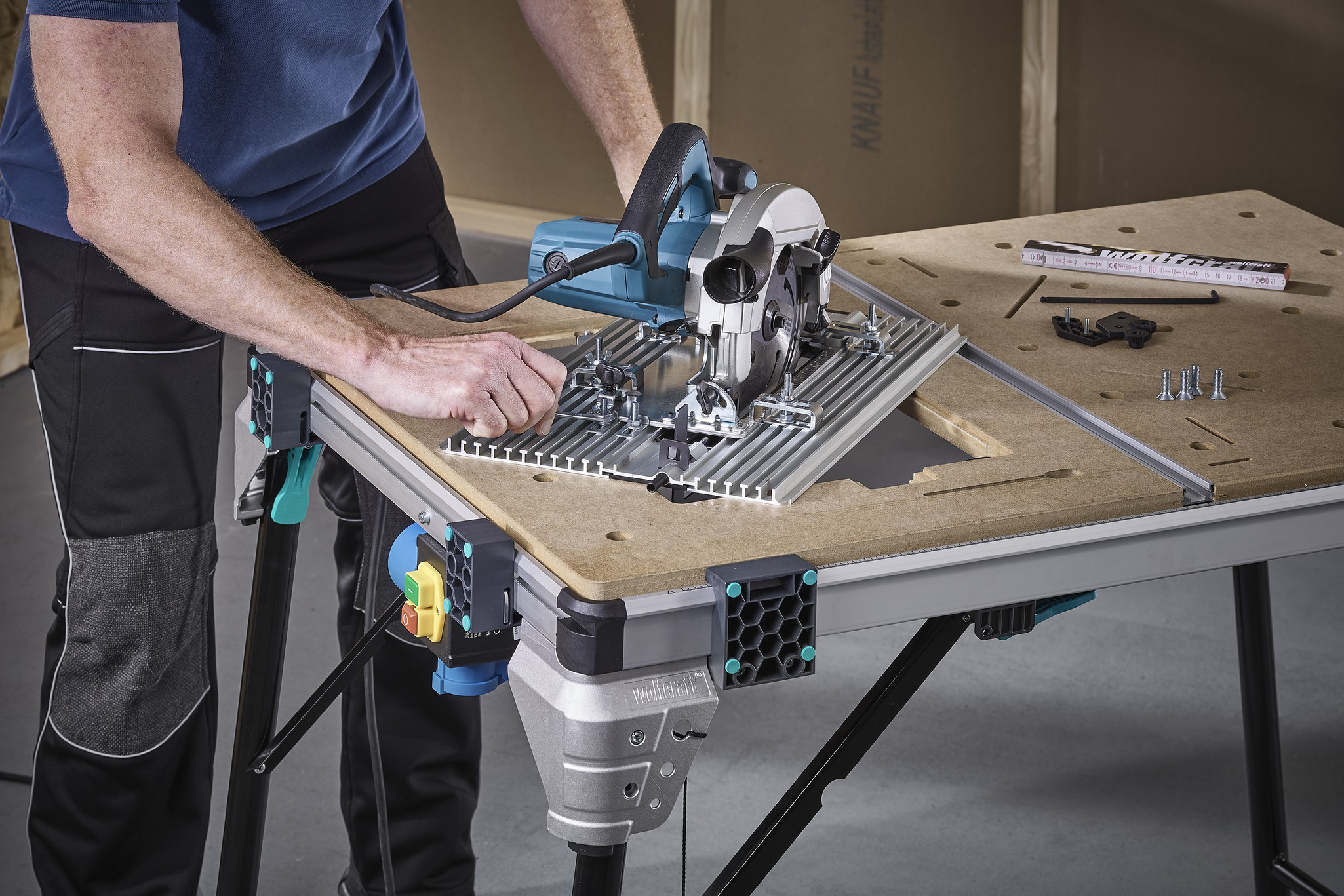

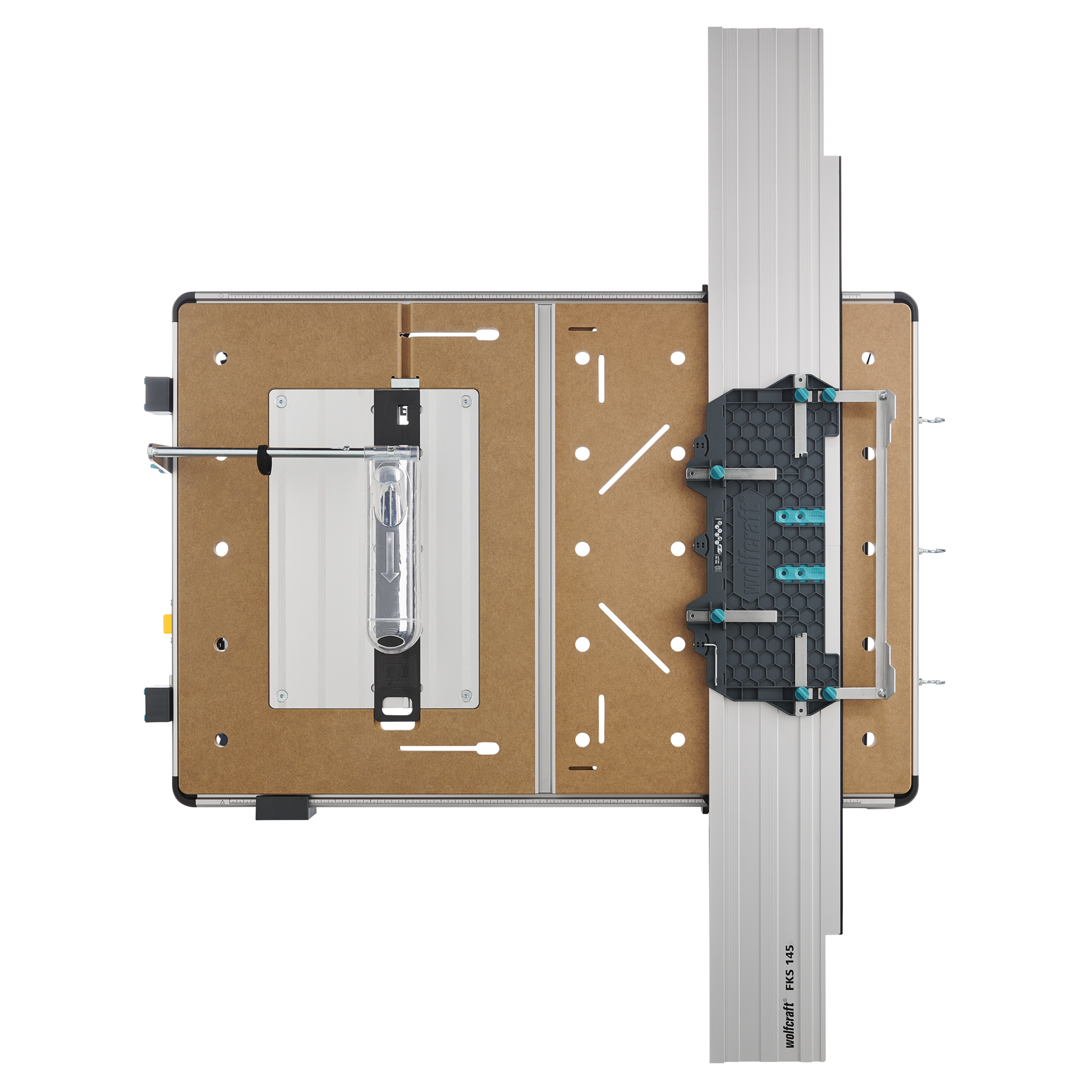

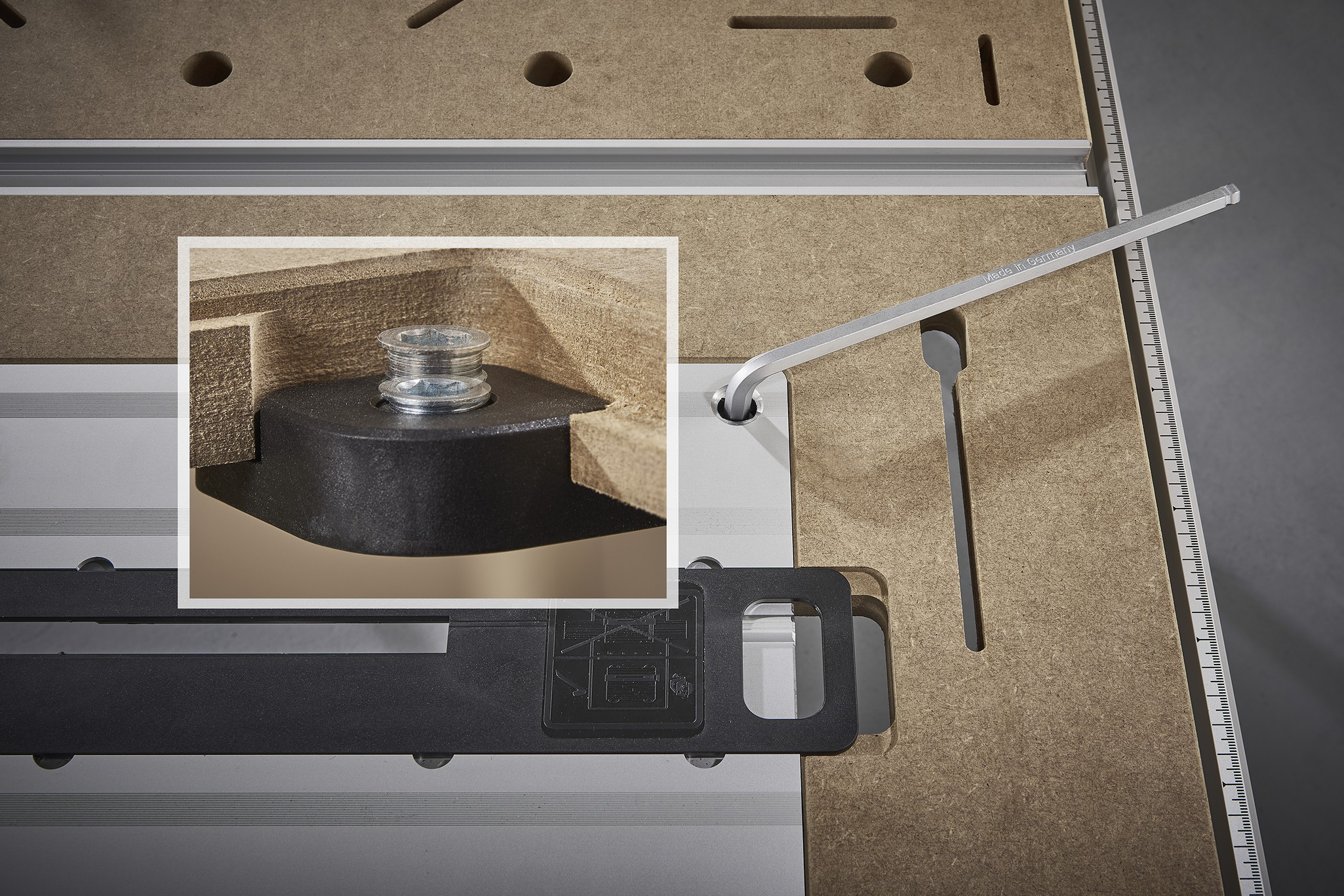

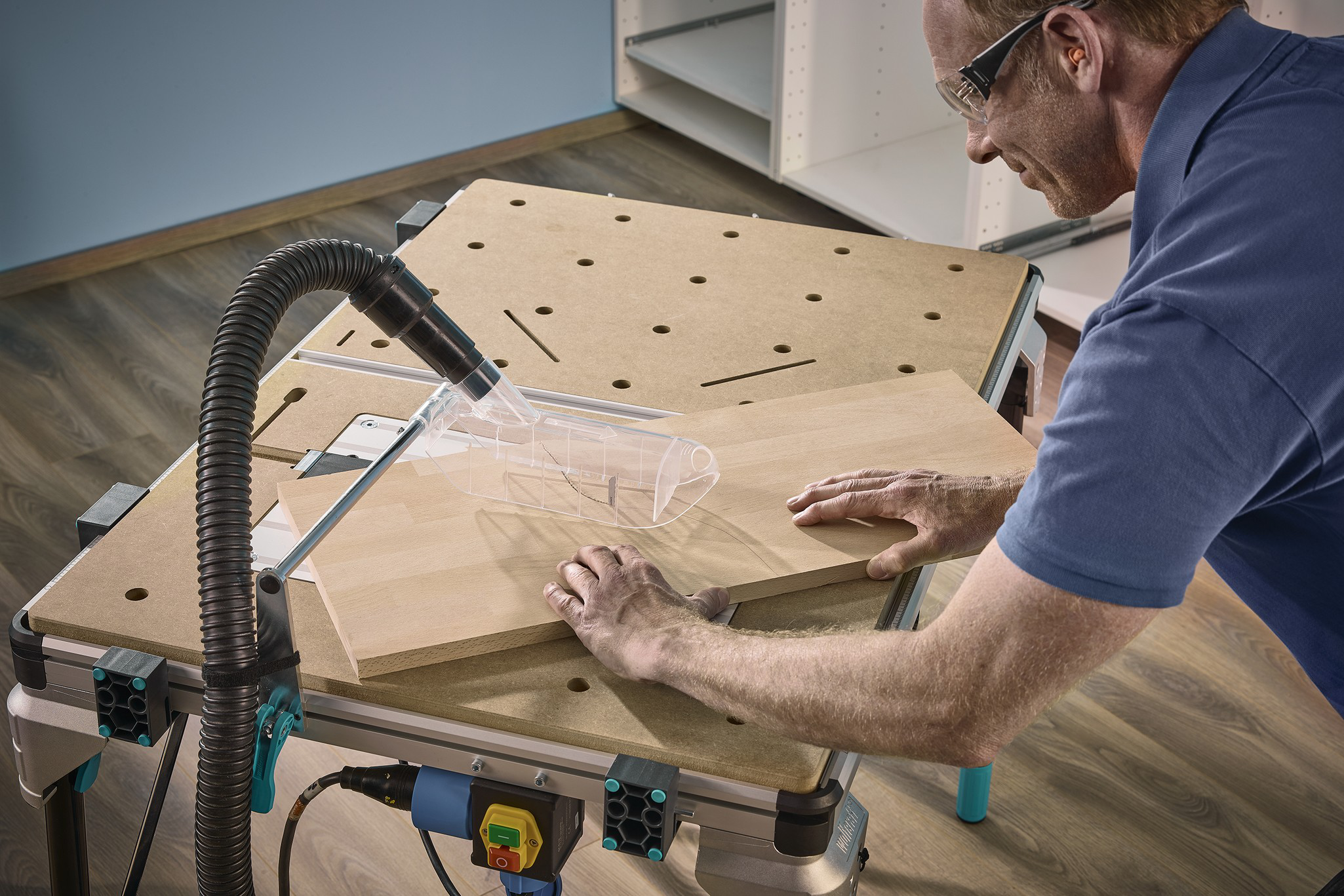

The multifunctional MASTER cut 2600 machine table combines six functions in one product. It can be used as a circular saw bench, jigsaw table, mitre saw table, work station, and – with the optional accessories – as a milling table and a station for guided circular saws. This makes the MASTER cut 2600 ideal for all trades involved in interior works. Thanks to the removable riving knife (available separately), it is one of the few machine tables that you can also use with handheld circular saws that do not have a riving knife. The machine plate is equipped with a safety lock that secures the plate and the tool reliably. It is also height-adjustable, offering you a flat transition to the worktop even with heavy equipment. The MASTER cut 2600 is compatible with many commercially available tools, regardless of the manufacturer. The safety switch is positioned on the side of the table so you can switch your tools on and off quickly and safely. When used as a circular saw bench, the parallel stop permits guided cuts up to a cutting width of 625 mm. The angle stop is equipped with spring-guided compensation and gliding elements. You can easily use it for angular cuts of up to +/- 60°, including a series of repeated cuts. It comes with four clamping blocks so you can firmly secure workpieces to the table profile with clamps. The accompanying Allen key can be used to move the clamping blocks to suit your workpiece. At the same time, the latter act as feet for the table when folded up, so it can be stored as a highly compact freestanding unit. The machine table can hold even solid wood boards with ease thanks to its load capacity of up to 120 kg. With just one product, you are reliably and effectively prepared for countless challenges around the home.

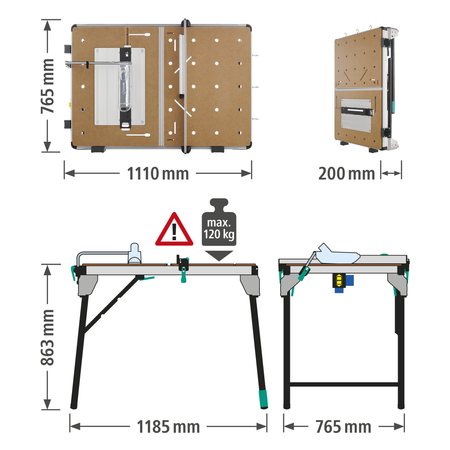

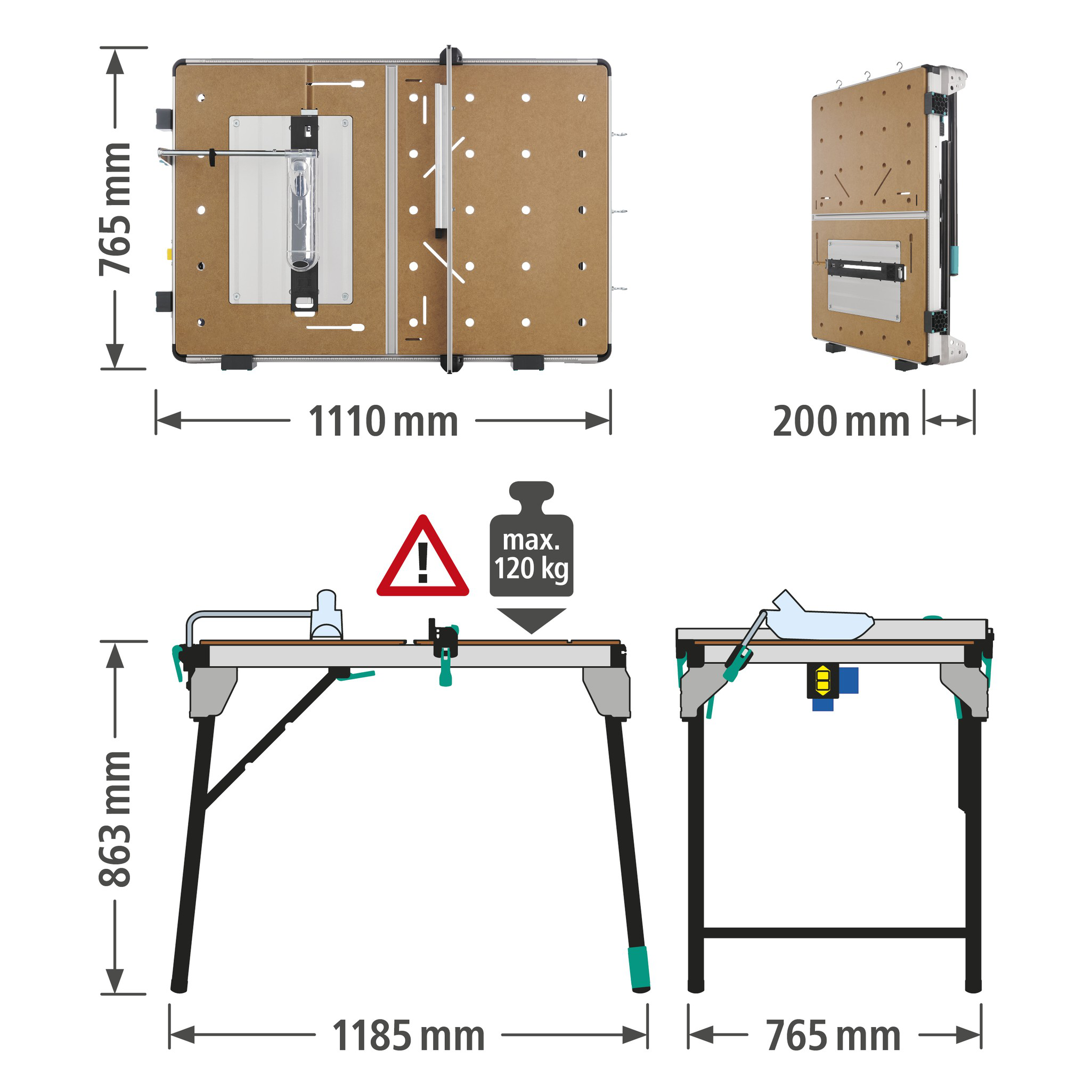

Product dimensions (W x D x H)	1,185 x 765 x 863 mm
Dimensions of folded product	1,110 x 765 x 200 mm
Product weight	20 kg
Worktop	1,035 x 695 mm
Working height	863 mm
Table plate material	MDF, aluminium
Base frame material	Steel Aluminium
Load capacity	120 kg
Additional product specification	max. height of the workpiece for the circular saw bench function: 60 mm  max. cutting width with parallel stop as table saw: 625 mm  diameter of clamping holes 20 mm  hole spacing on worktop 128 mm in accordance with DIN EN 62841

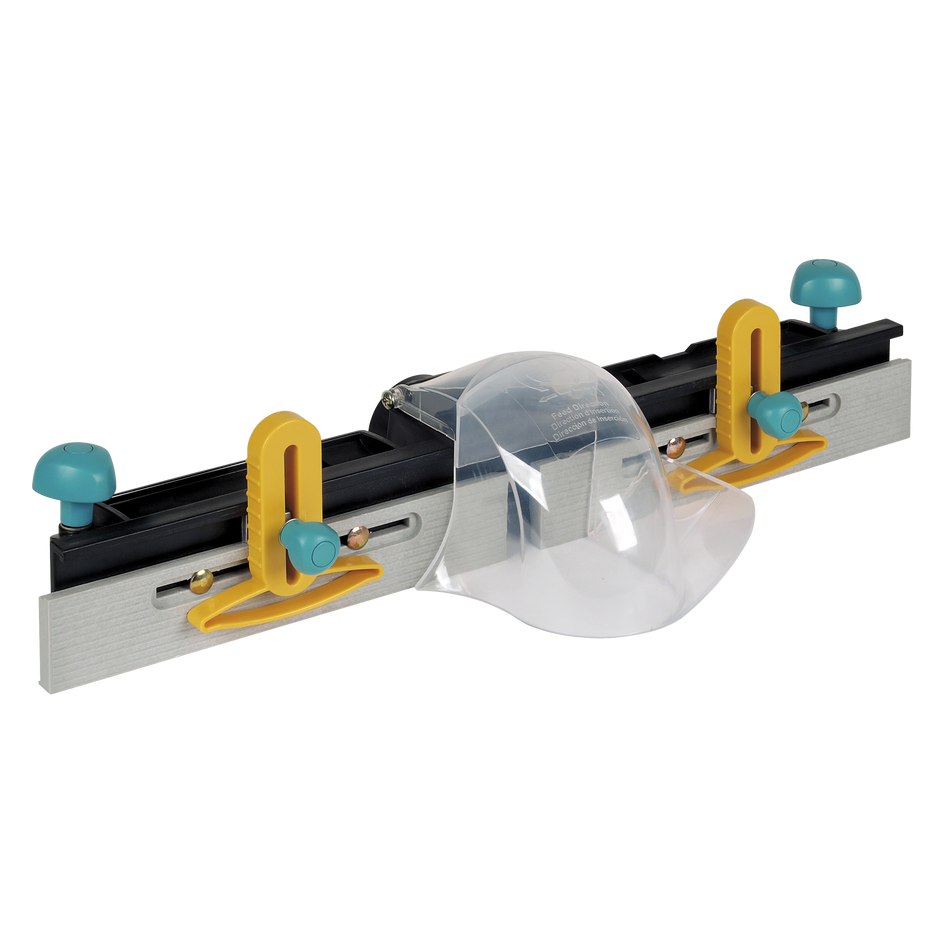

Machine area of working tables	for circular handsaws with riving knife, up to a maximum cutting depth of 70 mm, blade diameter of 200 mm, a base plate of max. 240 x 360 mm and a distance from the blade to the end of the motor housing of max. 225 mm; must only be used with appropriate knife insert.  circular handsaws that do not have a riving knife can only be used in combination with riving knife art. no. 6916000 (up to max. 159 mm blade diameter) or riving knife art. no. 6917000 (from 160 up to max. 200 mm blade diameter).  for routers with max. 230 V, max. 1800 W, max. base plate diameter: 180 mm; max. base plate height: 40 mm; for max. router bit diameters of 27 mm; must only be used with parallel milling guide (art. no. 6901000).  for jigsaws with a base plate of max. 90 x 200 mm cordless tools cannot be used
