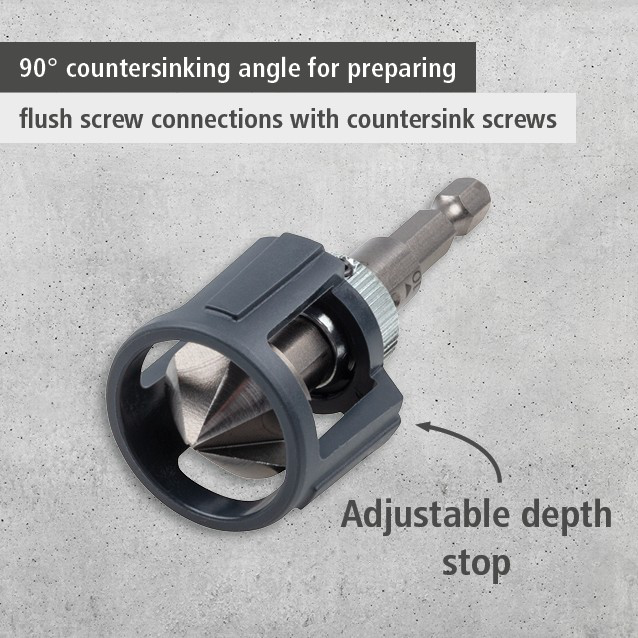

- 90° countersinking angle for preparing flush screw connections with countersink screws
- adjustable depth stop with fixed setting positions for countersink screws with thread up to Ø 10 mm
- special 3-edge cutting geometry for quiet running and fast work progress
- cutting edges with radial relief for clean countersinking without tear-out, with high cutting performance
- special depth stop shape enables an unobstructed view of the work area and good chip removal
- depth stop with closed edge for even pressure distribution and protection of the workpiece surface
- ¼' hexagon shank for quick tool changes
- high quality 'Made in Germany'
Conical Countersink with Depth Stop, Hexagon Shank

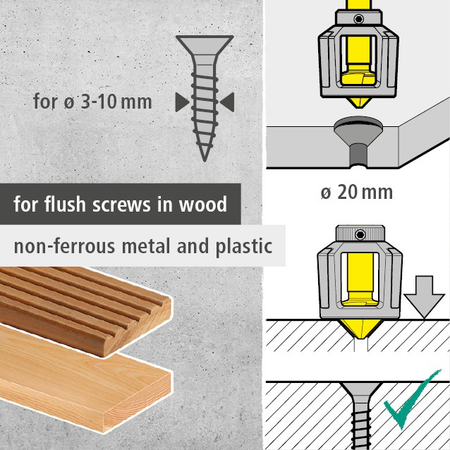

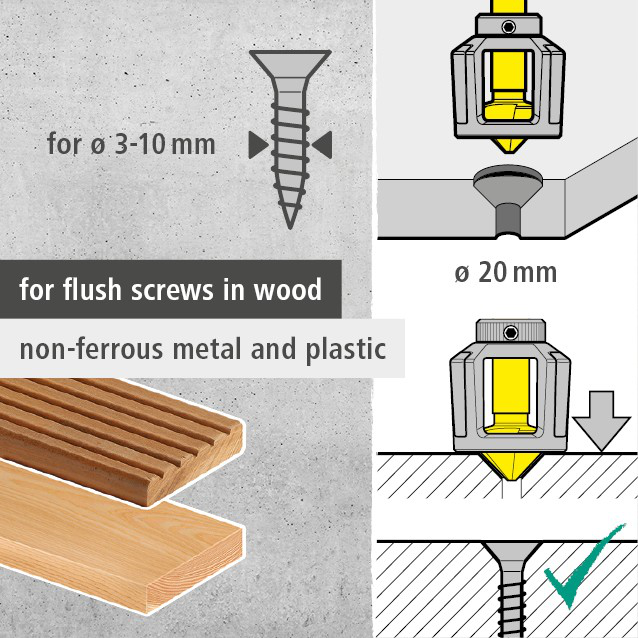

For controlled countersinking of drill holes for flush screw connections in wood, non-ferrous metal and plastic
- 90° countersinking angle for preparing flush screw connections with countersink screws
- adjustable depth stop with fixed setting positions for countersink screws with thread up to Ø 10 mm
- special 3-edge cutting geometry for quiet running and fast work progress
Regular price
22,95€
inc. VAT
A minimum order value of 20,00 € applies to all purchases.
FREE shipping from 49,00 € of purchase.
FREE Returns for 14 days.
Couldn't load pickup availability
conical countersink made of tool steel for countersinking existing bore holes in wood, non-ferrous metal and plastic
The conical countersink made of tool steel is ideal for countersinking existing bore holes in wood, non-ferrous metal and plastic. The countersinking angle is 90°, which enables you to prepare clean holes for the flush screw connections with countersink screws.
Here the adjustable depth stop with fixed setting positions for countersink screws with thread diameter up to Ø 10 mm helps you. Its special shape provides an unobstructed view of the work area. To protect the surface, the depth stop has a closed edge that distributes the pressure evenly.
The special 3-edge cutting geometry of the conical countersink ensures very quiet running and fast work progress. The cutting edges are with radial relief, so that you can create clean countersunk holes without tear-out and profit from the fast work progress. Thanks to the ¼" hexagon shank, the countersink is quickly ready for use. The conical countersink is produced in Germany – that means you are investing in a high-quality, durable product.
Scope of delivery
1 tool steel countersink with depth stop
1 hexagonal key, A/F 2
Here the adjustable depth stop with fixed setting positions for countersink screws with thread diameter up to Ø 10 mm helps you. Its special shape provides an unobstructed view of the work area. To protect the surface, the depth stop has a closed edge that distributes the pressure evenly.
The special 3-edge cutting geometry of the conical countersink ensures very quiet running and fast work progress. The cutting edges are with radial relief, so that you can create clean countersunk holes without tear-out and profit from the fast work progress. Thanks to the ¼" hexagon shank, the countersink is quickly ready for use. The conical countersink is produced in Germany – that means you are investing in a high-quality, durable product.
Scope of delivery
1 tool steel countersink with depth stop
1 hexagonal key, A/F 2
| Working diameter Ø | 20 mm |
| Countersinking angle | 90 ° |
| Number of cutting edges | 3 |
| Shank version | Hexagon shank A/F 6.35 mm (¼") |
| Direction of rotation | Clockwise rotation |
| Speed of rotation | 1,000 – 1,500 RPM |
| Material | Tool Steel |
For use on metal, it is mandatory to first centre punch or pilot drill the material and to use cutting oil.
