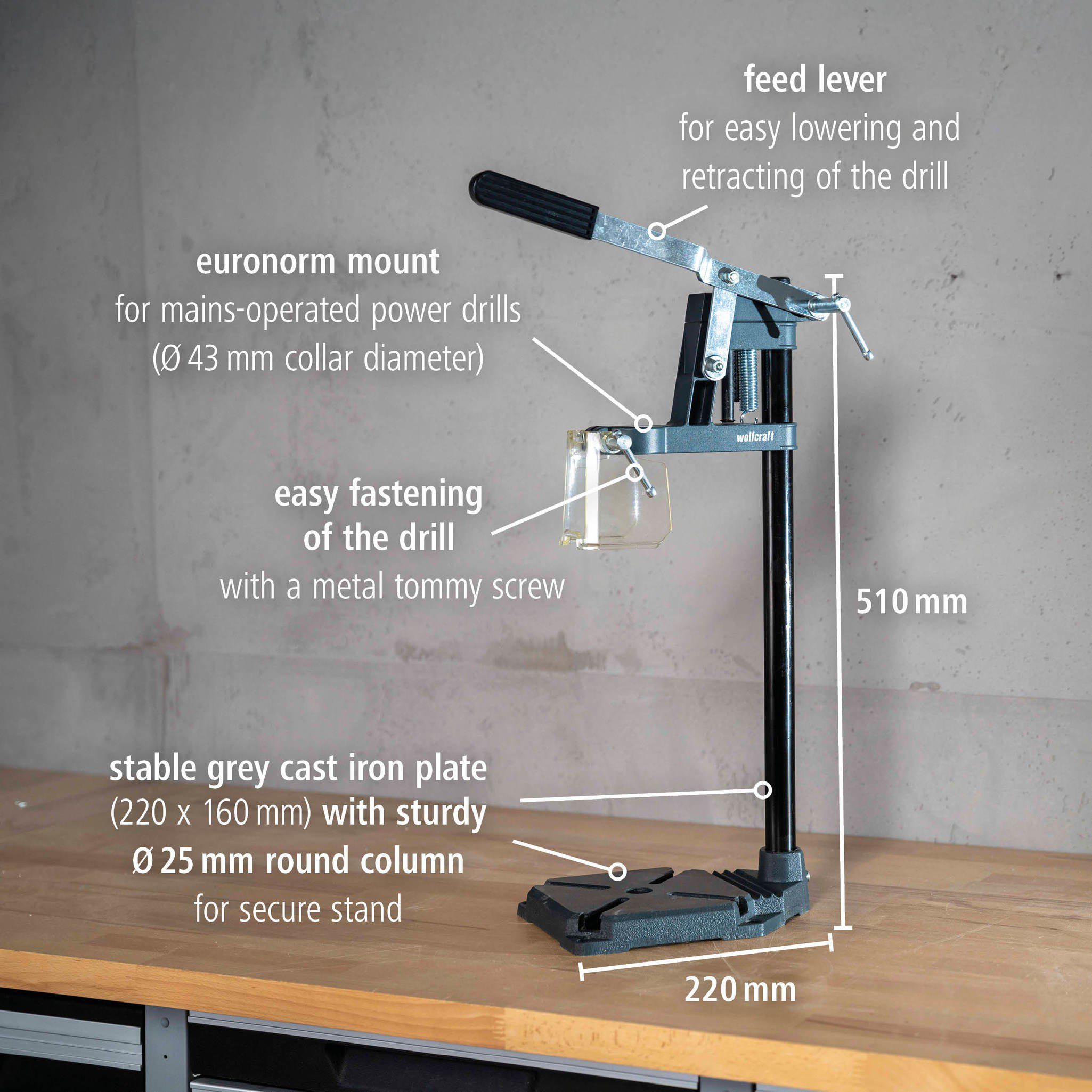

- Euronorm mount for mains-operated power drills with a collar diameter of 43 mm
- easy fastening of the drill with a metal tommy screw
- stable grey cast iron plate (220 x 160 mm) with sturdy Ø 25 mm round column for secure stand
- single-arm feed lever and return spring for easy lowering and retracting of the drill
- depth stop with scale for accurately adjusting the drilling depth to the millimetre

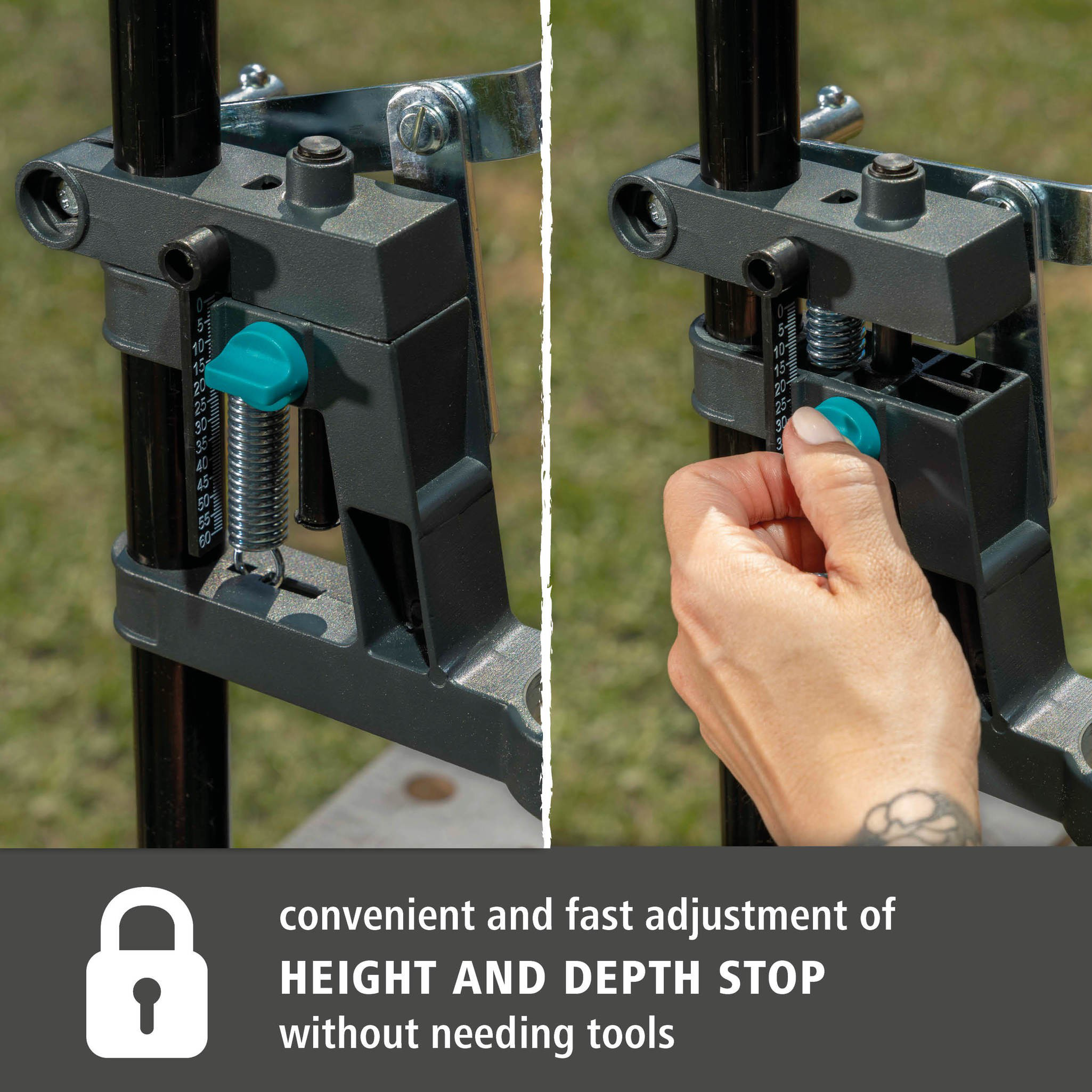

- convenient and fast adjustment of height and depth stop without needing tools

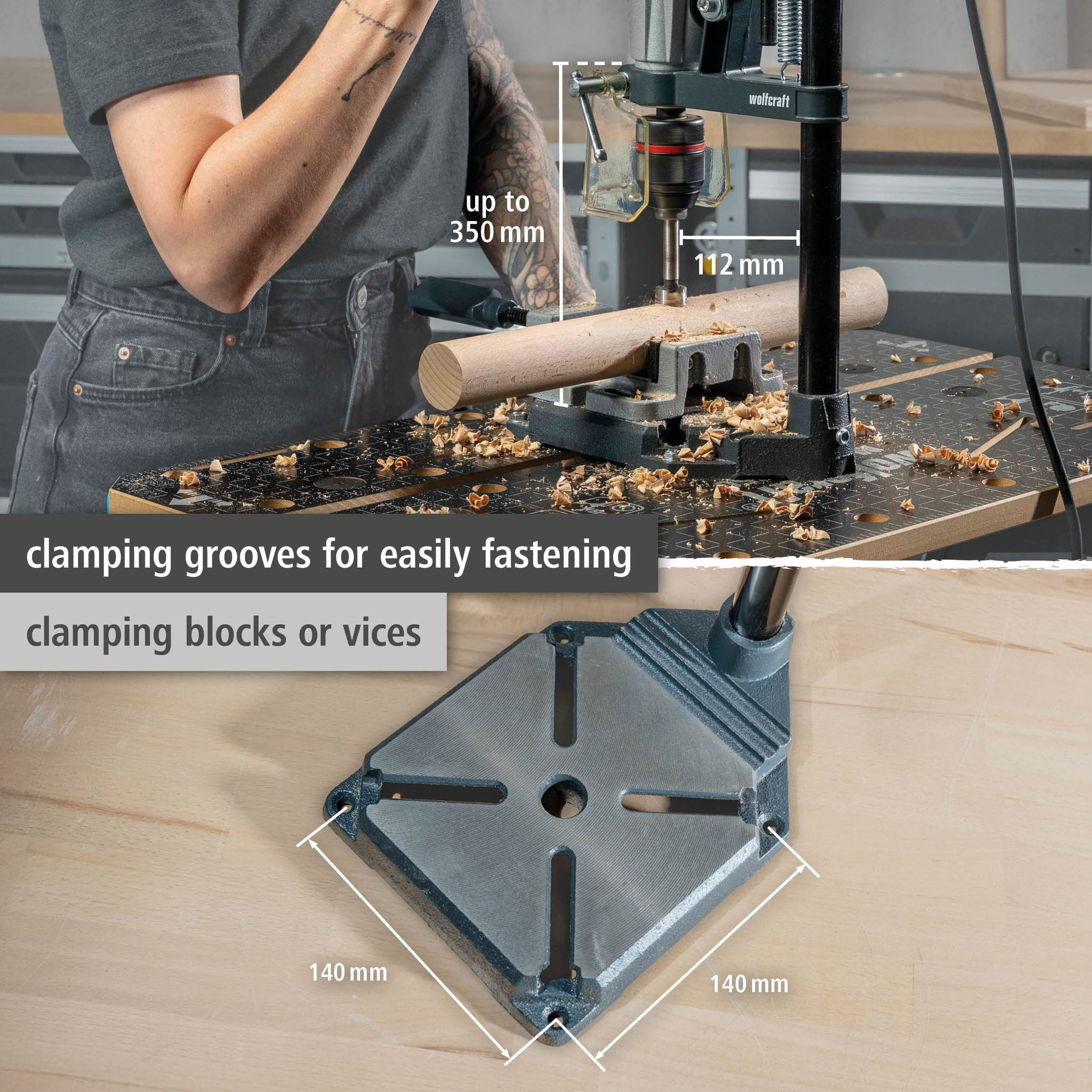

- worktop (150 x 147 mm) with clamping grooves for easily fastening clamping blocks or vices

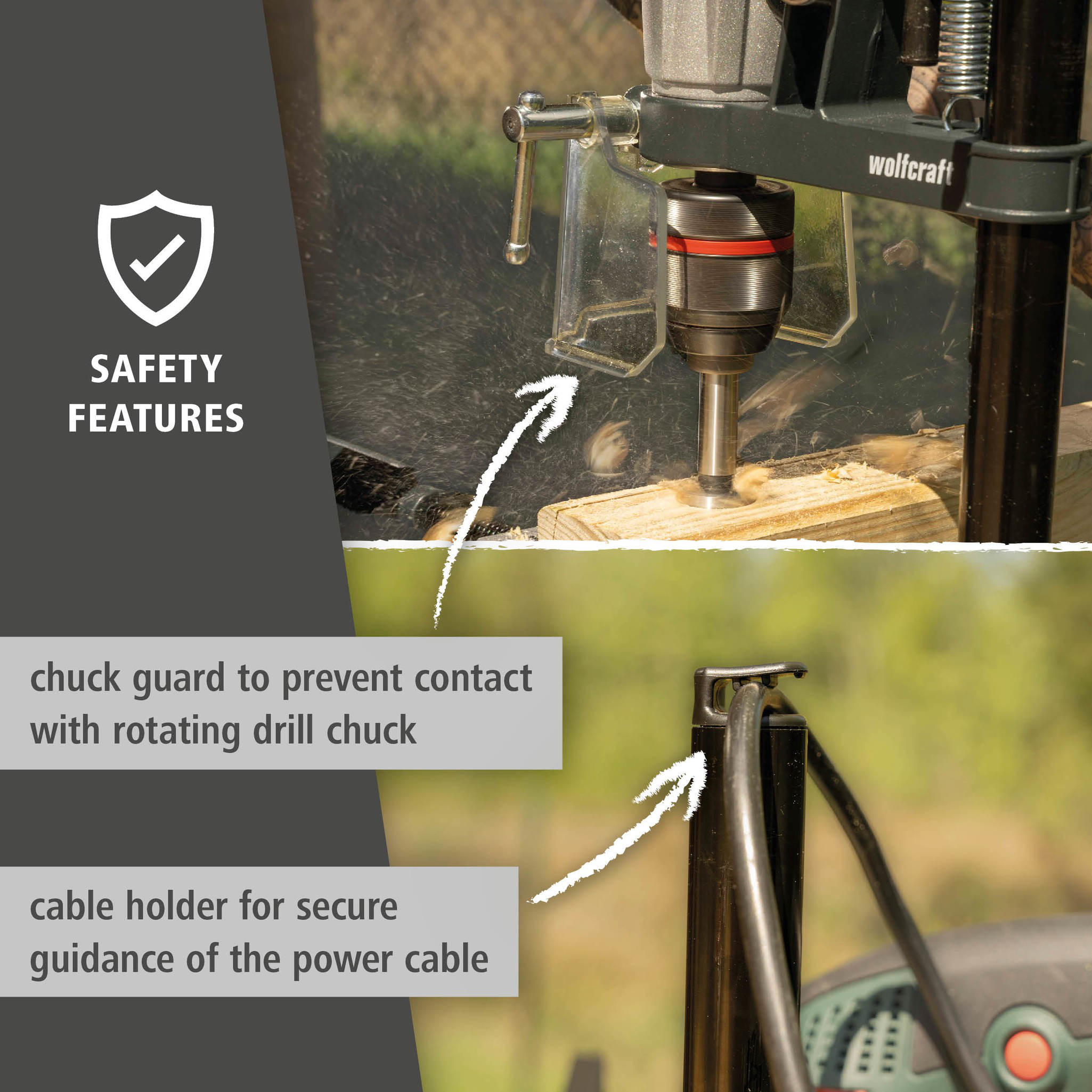

- drill chuck guard for protection against accidental contact with the rotating chuck
- cable holder ensures safe routing of the drill’s power cord
SOLID Drill Stand
The compact solution for depth-restricted drilling
- Euronorm mount for mains-operated power drills with a collar diameter of 43 mm
- 112 mm throat clearance and 55 mm stroke
- Ø 25 mm round column
Regular price
49,95€
inc. VAT
A minimum order value of 20,00 € applies to all purchases.
FREE shipping from 49,00 € of purchase.
FREE Returns for 14 days.
Couldn't load pickup availability

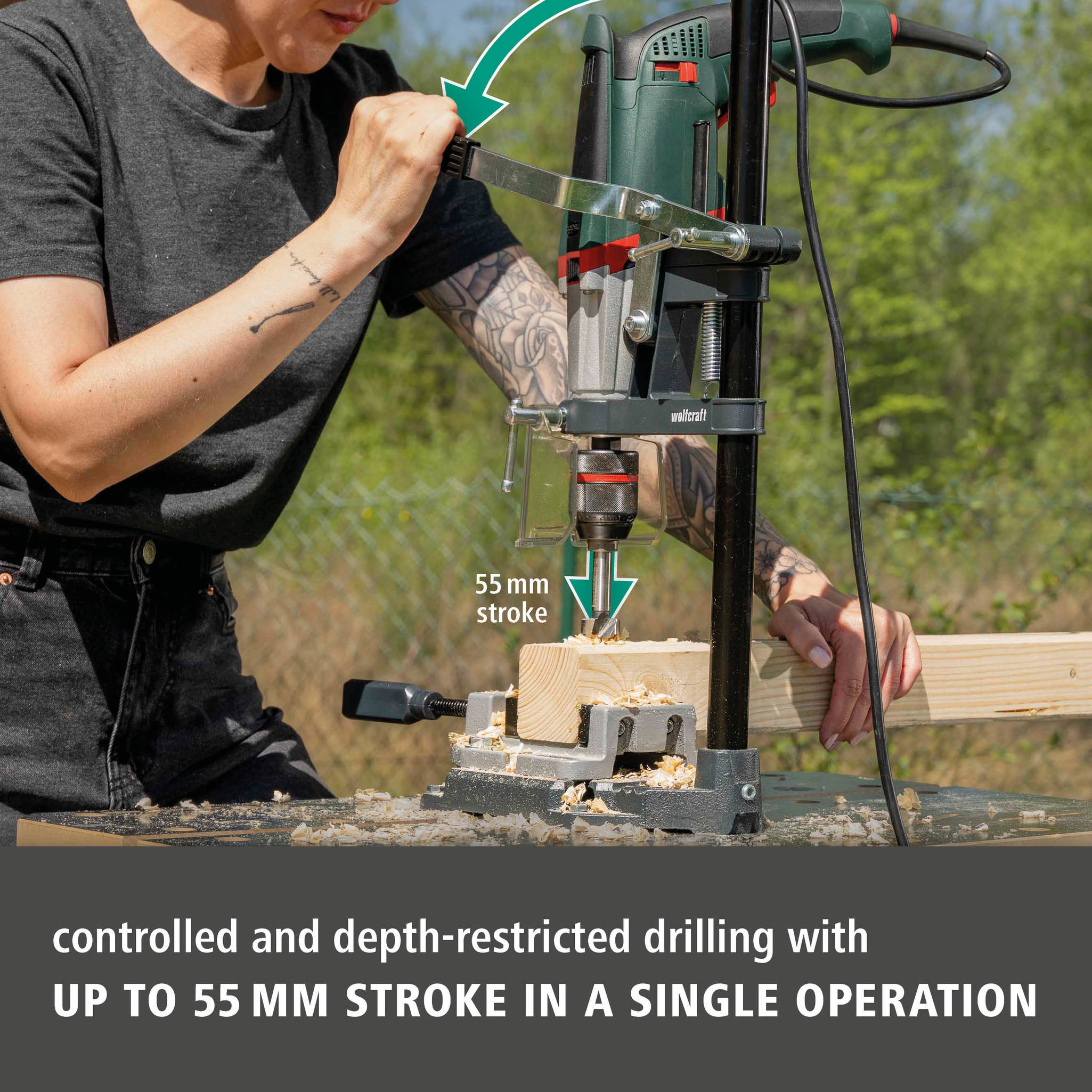

SOLID drill stand for controlled, depth-restricted drilling with 112 mm throat clearance and a stroke of up to 55 mm
The SOLID Drill Stand is a compact and straightforward solution for controlled, depth-restricted drilling, with throat clearance of 112 mm and a stroke of up to 55 mm. Thanks to its Euronorm collar, it is compatible with all commercially available power drills that have a Ø°43°mm Euronorm neck.
The solid cast iron base and sturdy Ø 25 mm round column ensure stability, while the single-arm feed lever and return spring simplify lowering and retracting the drill.
The depth stop with integrated millimetre scale and the height of the upper part can both be adjusted without tools.
A chuck guard and integrated cable holder ensure safe operation.
The solid cast iron base and sturdy Ø 25 mm round column ensure stability, while the single-arm feed lever and return spring simplify lowering and retracting the drill.
The depth stop with integrated millimetre scale and the height of the upper part can both be adjusted without tools.
A chuck guard and integrated cable holder ensure safe operation.
| Product dimensions (W x D x H) | 160 x 320 x 510 mm |
| Product weight | 3.1 kg |
| Working heights | 350 mm |
| Clearance | 112 mm |
| Material | Die-cast aluminium Steel Plastic |
| Additional product specification | working stroke max. 55 mm column diameter 25 mm dimensions of base plate: 160 x 220 mm Worktop dimensions: 147 x 150 mm |
Mounting material not included (screws for wolfcraft vices on wolfcraft drill stands: M8 x 25; screws for securing the drill stand to a base: max. M6).
