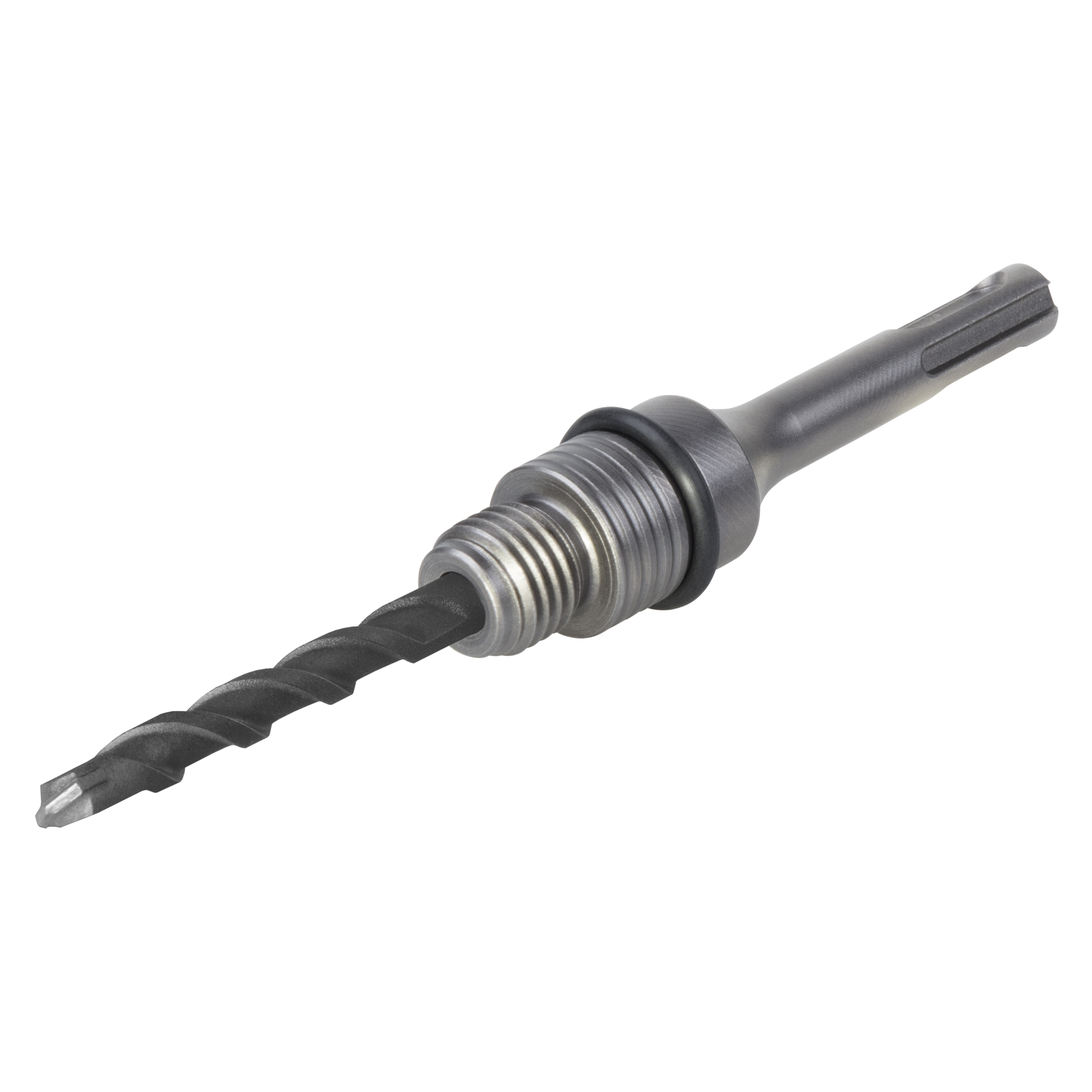

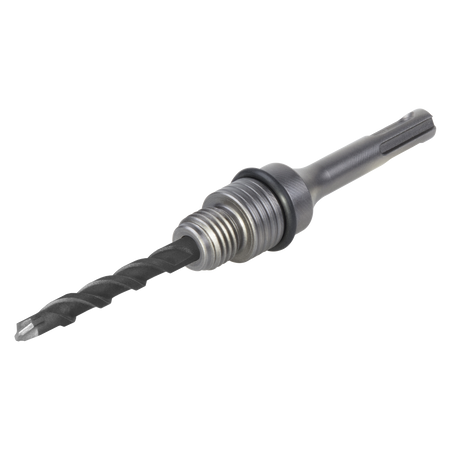

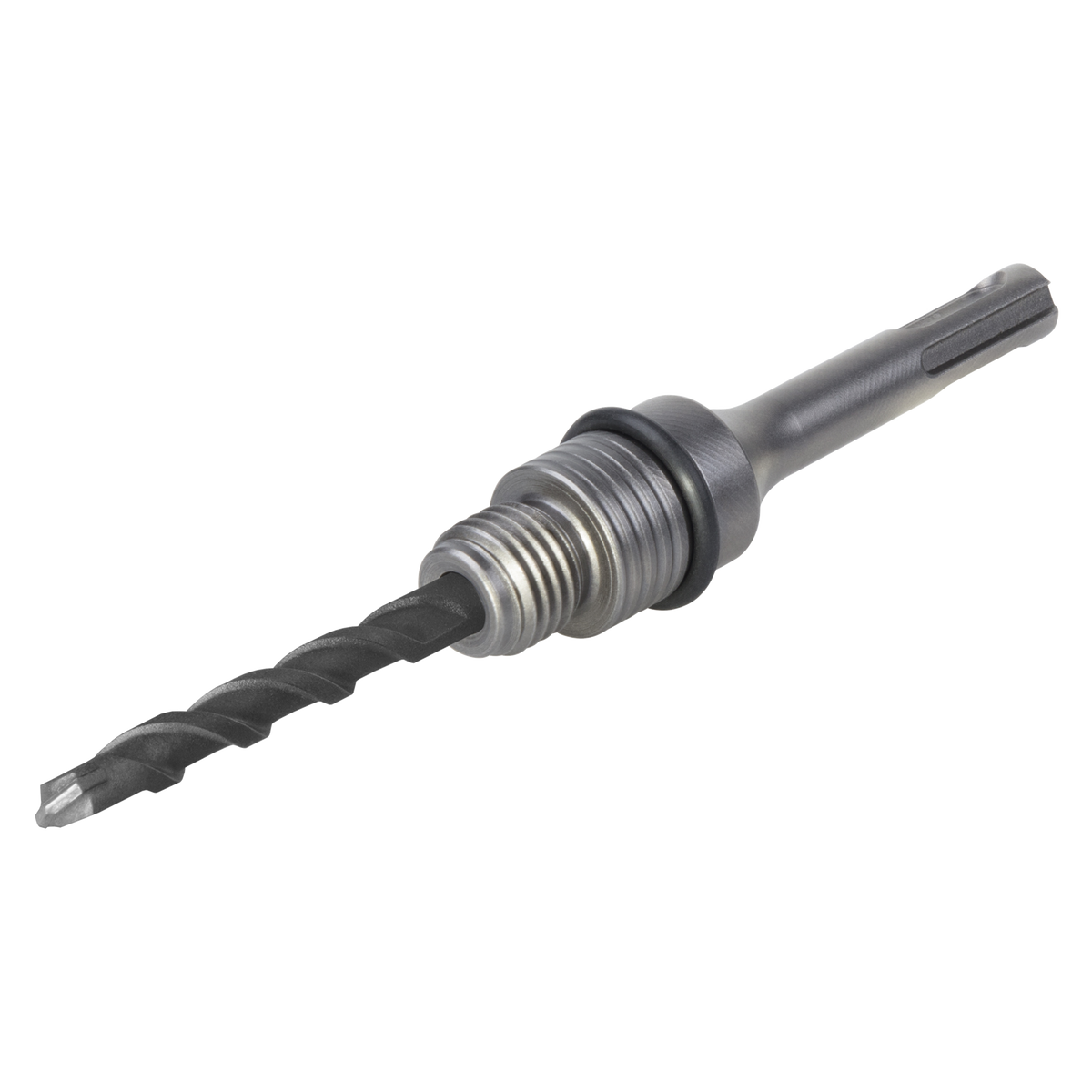

SDS Plus Mandrel With Centring Drill Bit, Ø 8 mm, 110 mm

Properties

SDS Plus shank, 110 mm, with M16 threaded connection for diamond tipped annular bits, made in Germany

• for rotating (ATTENTION: not hammering) use with power drills and hammer drills with SDS Plus chuck on concrete, brick walls and stone
• exact positioning with the integrated, ground centring drill bit (Ø 8 mm)

Description

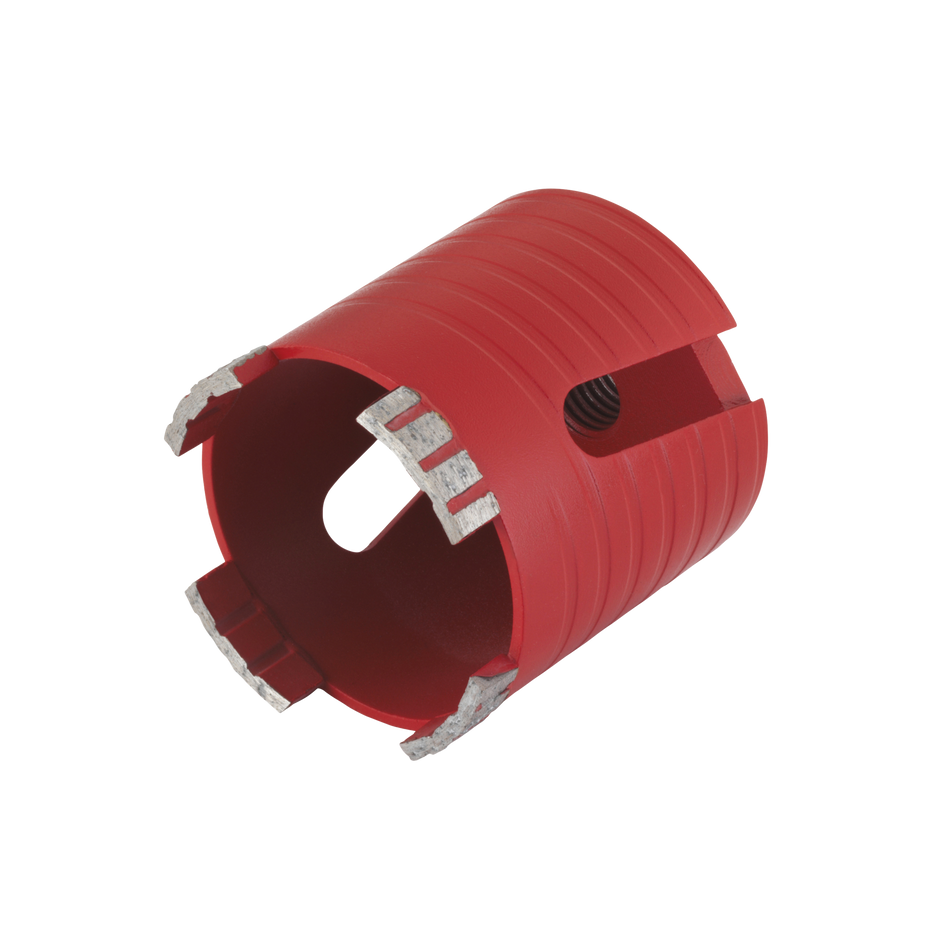

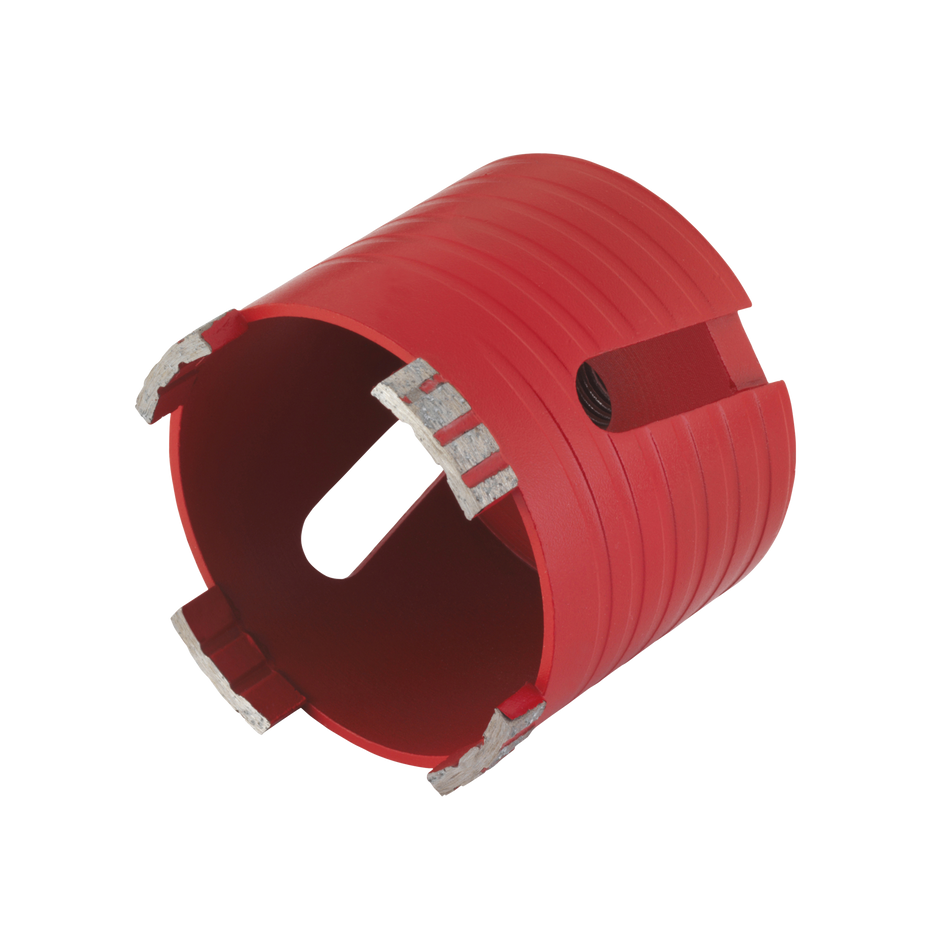

The M16 threaded connection makes the SDS Plus mandrel with centring drill bit compatible with diamond tipped annular bits from wolfcraft. It is suitable for rotating (IMPORTANT: not hammering) use with power drills and hammer drills with SDS Plus chuck for drilling holes in concrete, brick walls and stone. A ground centring drill bit (Ø 8 mm) with a length of 80 mm helps you to position your drilled hole exactly.

Technical Data

Drill length	80 mm
Drill diameter	8 mm
Drill tip angle	130 °
Direction of rotation	Clockwise rotation
Material	Tungsten carbide tipped drill
Shank version	SDS-plus shank
Threaded connector	M16

Spare Parts

117710029 - O-ring 18x4.0 mm, black 5460-90, 5425, 5428, 5955

116720169 - Cylindrical dowel 4x14 mm DIN6325 M6 5460-90, 5425, 5428, 5955
