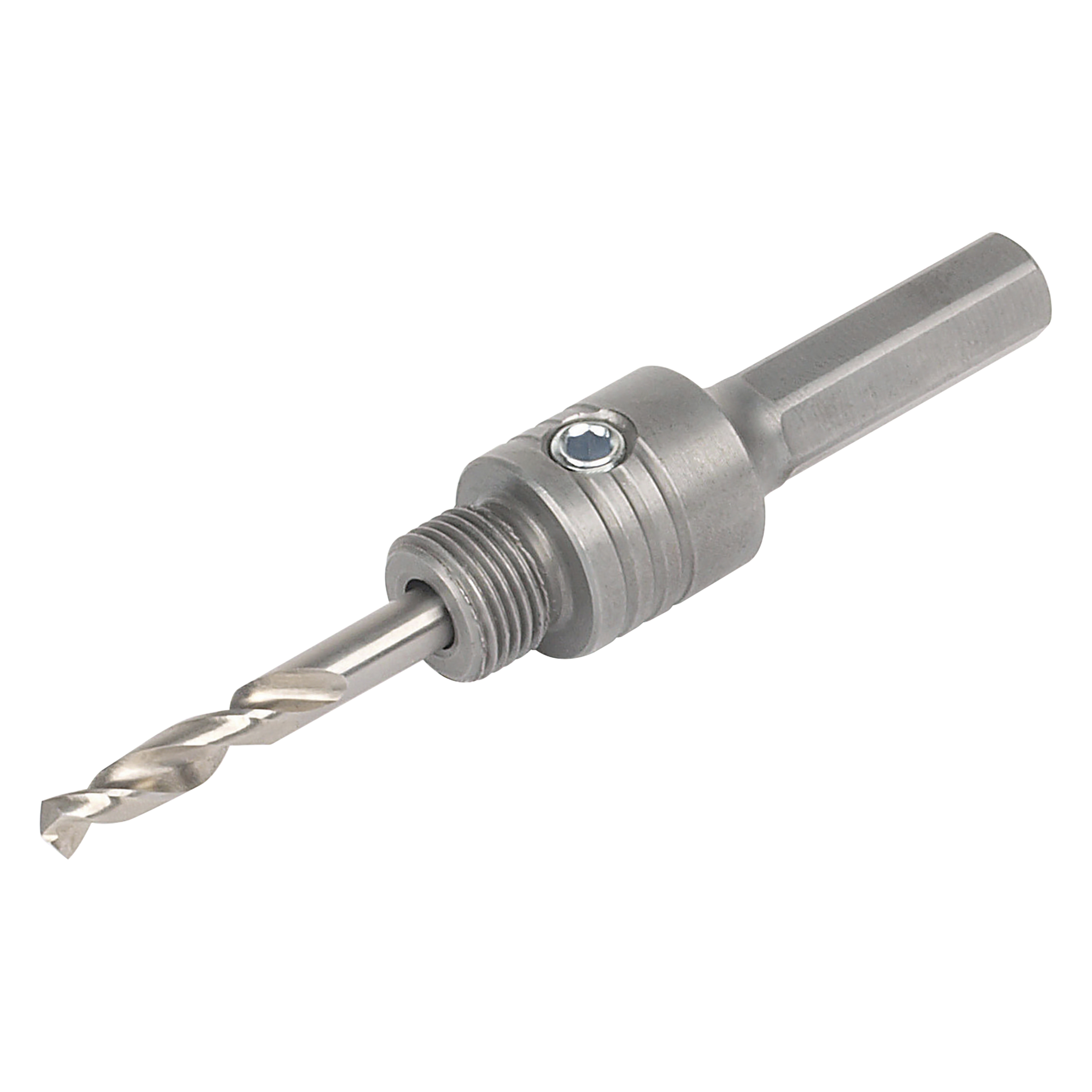

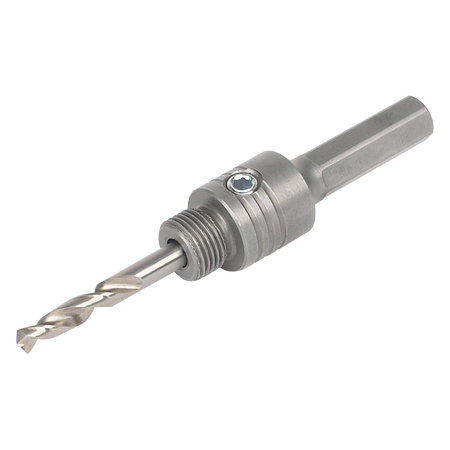

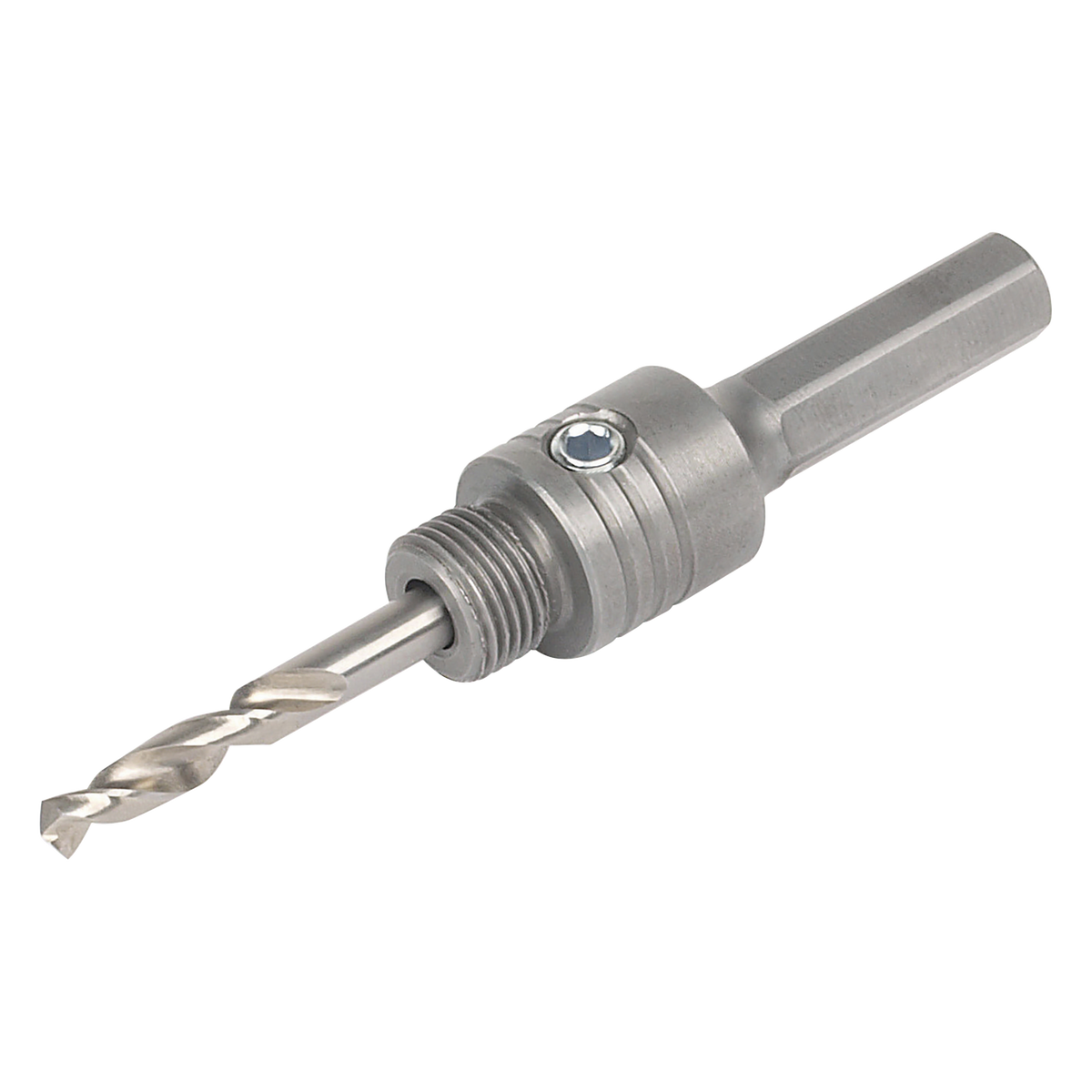

Mandrel With Centring Drill Bit

Properties

accessory for BIM hole saw blades

• hexagon shank with 5/8' threaded connection (15.88 mm) for use with cordless screwdrivers and power drills
• exact positioning with the integrated centring drill bit (Ø 6 mm) (HSS), 68 mm

Description

The 5/8" threaded connection (15.88 mm) makes the mandrel with centring drill bit compatible with BIM hole saw blades. It is suitable for use with power drills and cordless screwdrivers and the hexagon shank makes it quick to secure in the chuck. The integrated centring drill bit (Ø 6 mm) with a length of 68 mm helps you to position your drilled hole exactly.

Technical Data

Drill length	50 mm
Drill diameter	6 mm
Drill tip angle	118 °
Direction of rotation	Clockwise rotation
Material	HSS drill
Shank version	Hexagon shank
Threaded connector	5/8" (15.88 mm)
