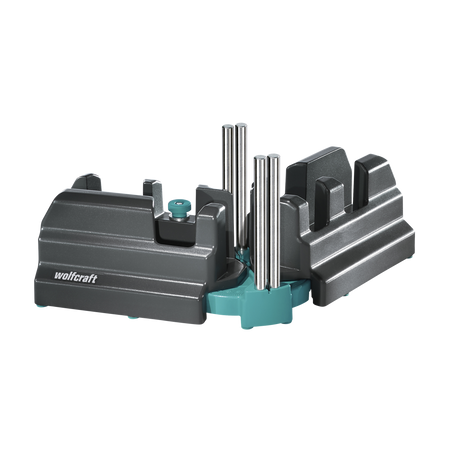

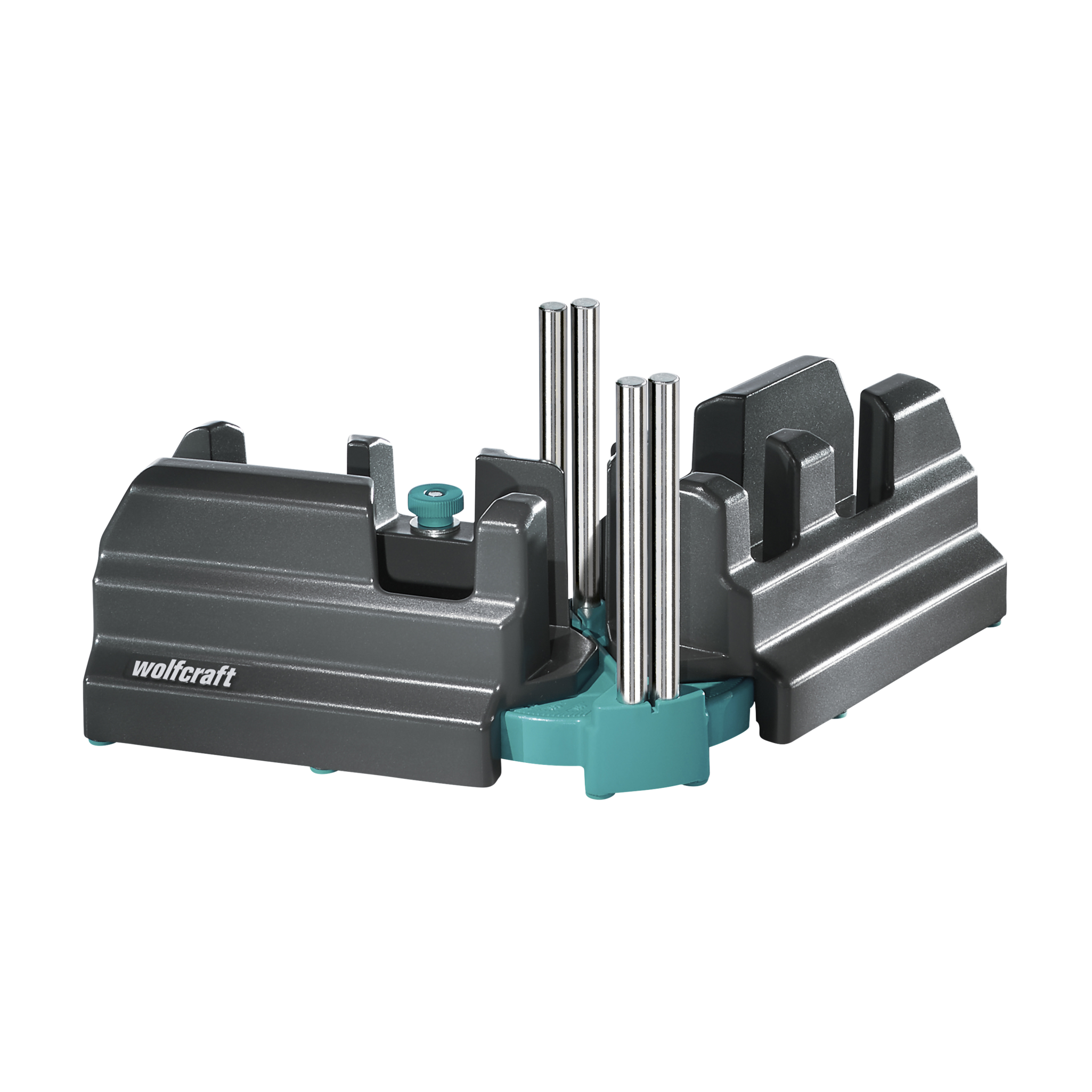

Bevel and Mitre Box, 100 mm

Properties

2-in-1 product for measuring angles and subsequently sawing precise mitres, e.g. for baseboards up to a height of 100 mm

• 2 moving arms for measuring angles of 85-180°
• integrated guide pins for the handsaw enable the precise and error-free sawing of mitres
• sturdy and durable thanks to high-quality design
• for baseboards up to a width of 30 mm
• high quality 'Made in Europe'

Description

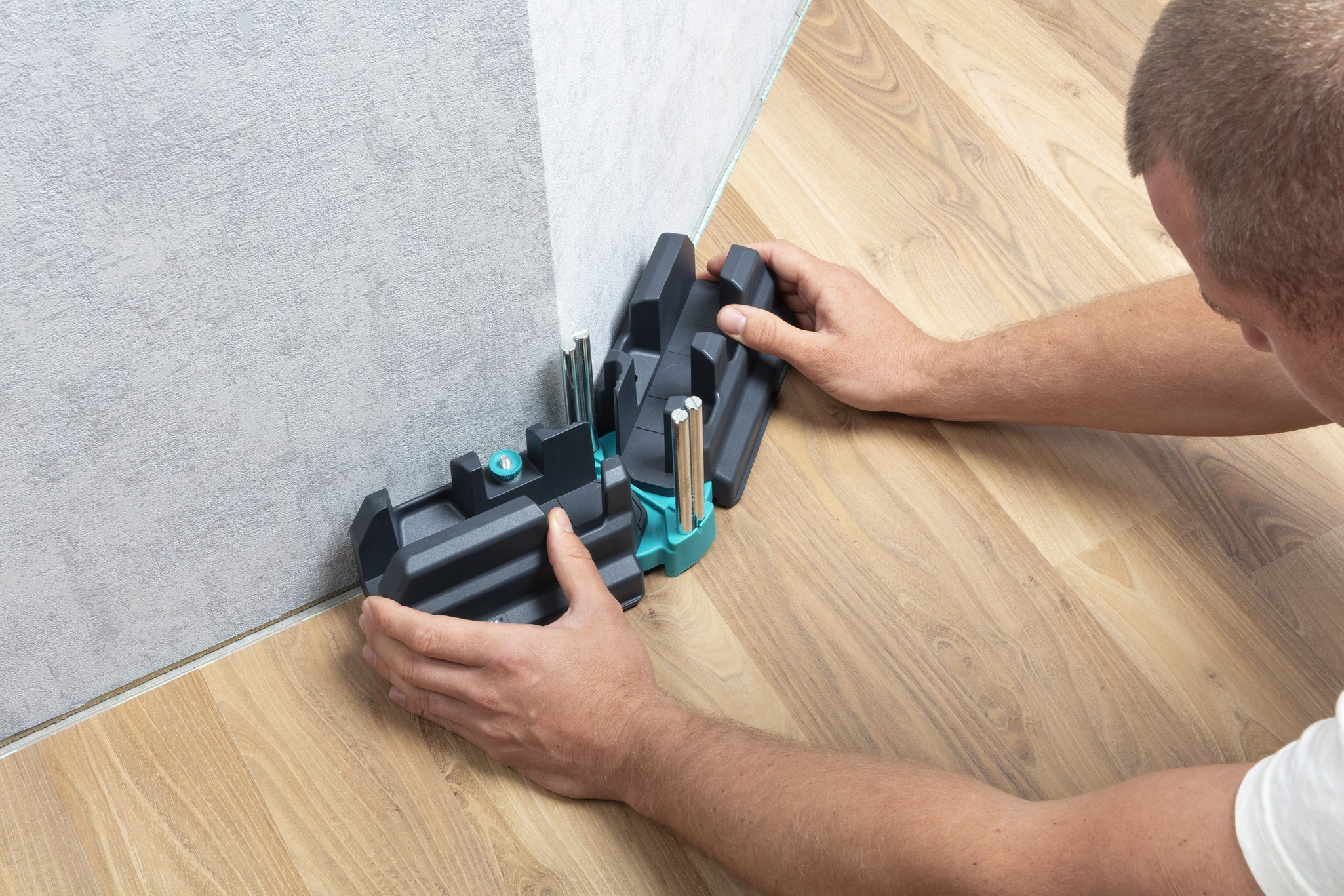

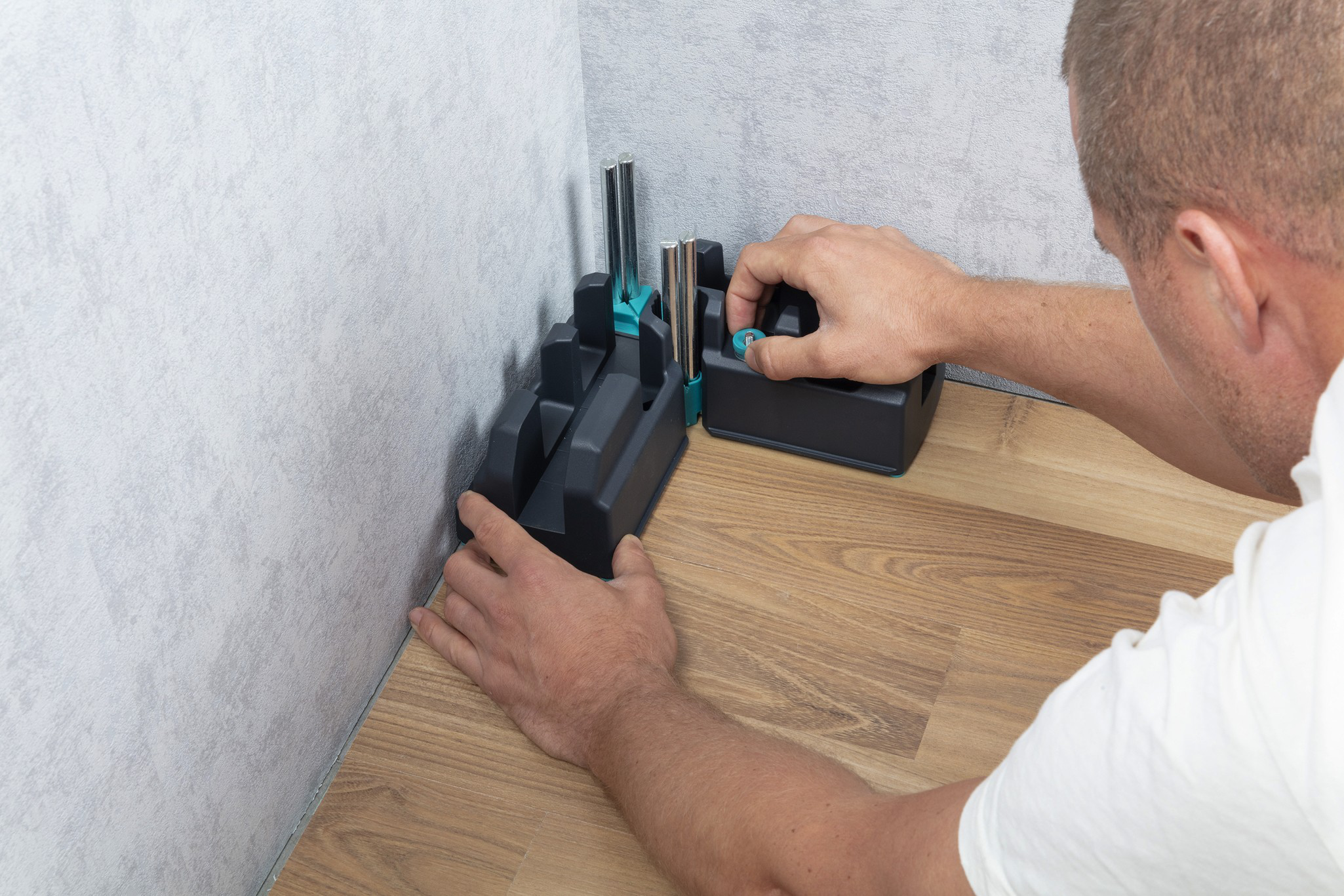

The bevel gauge and mitre box for measuring and sawing precise mitres is a clever 2-in-1 product that guarantees you perfectly fitted baseboards up to a height of 100 mm, eliminating the need for an angular bevel gauge. You will also save yourself the tedious and error-prone task of transferring the correct angle to the saw. Measure corners from 85-180° conveniently using the two moving arms. In the second step, place the baseboard in the guides provided and saw using the backsaw. The automatic angle bisector using 2 guide pins ensures precise mitres. Using the bevel and mitre box, you will be able to achieve perfect baseboard transitions even in the most skewed of corners that old buildings have to offer.

Technical Data

Working height	100 mm
Angle min - max	85 – 180 °
Product dimensions (W x D x H)	100 x 353 x 140 mm
Product weight	0.66 kg

Spare Parts

116610784 - Knurled Nut M6, turquoise

119916948 - Accessory bag 6948200

140106948 - Packaging 6948200
