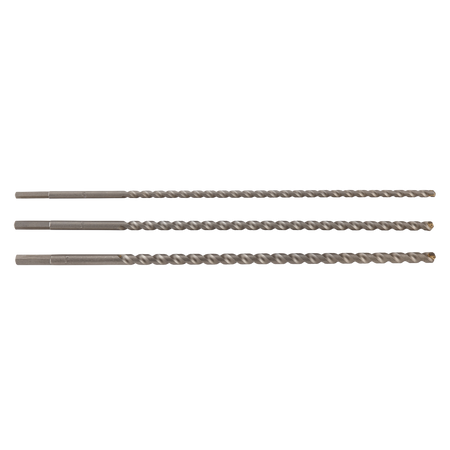

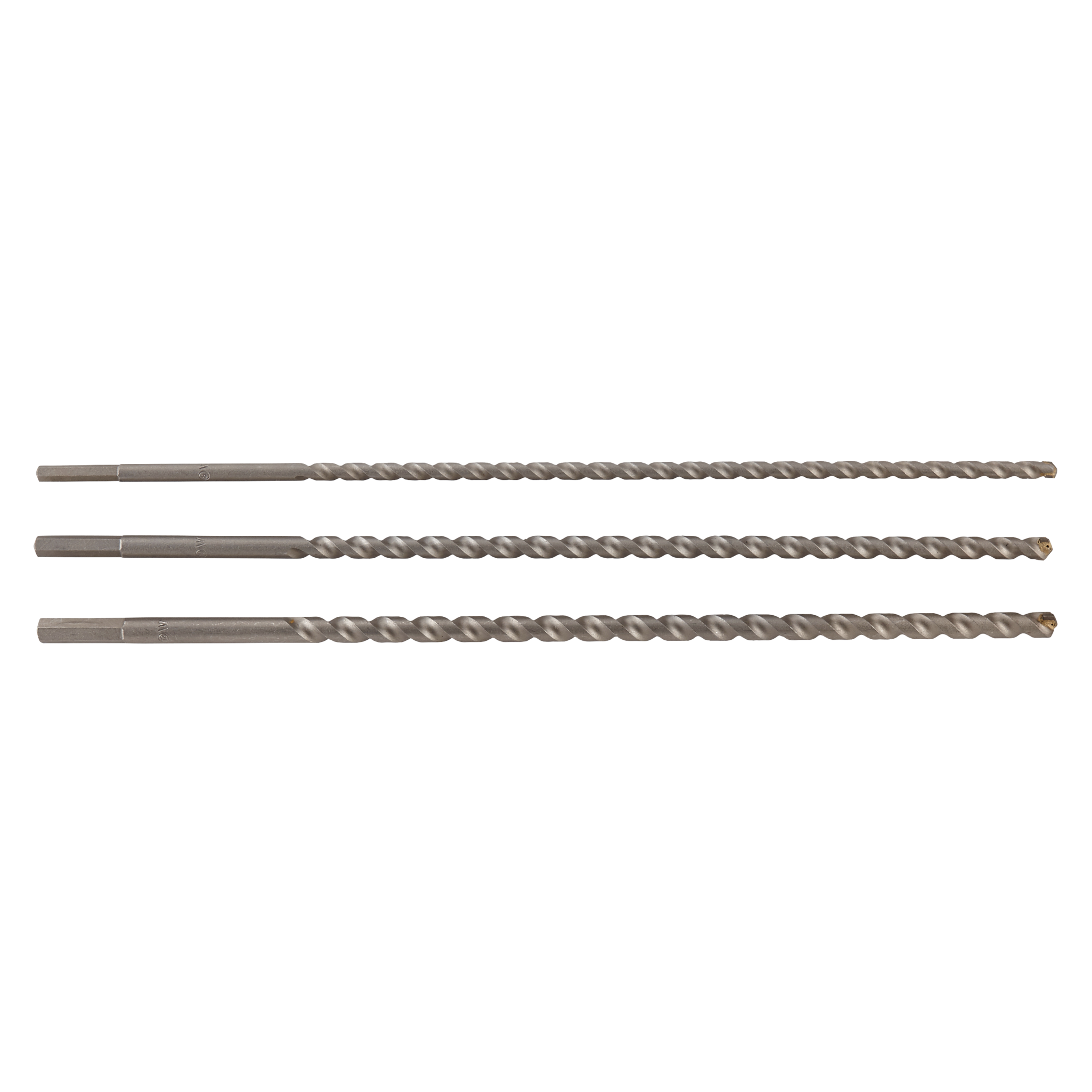

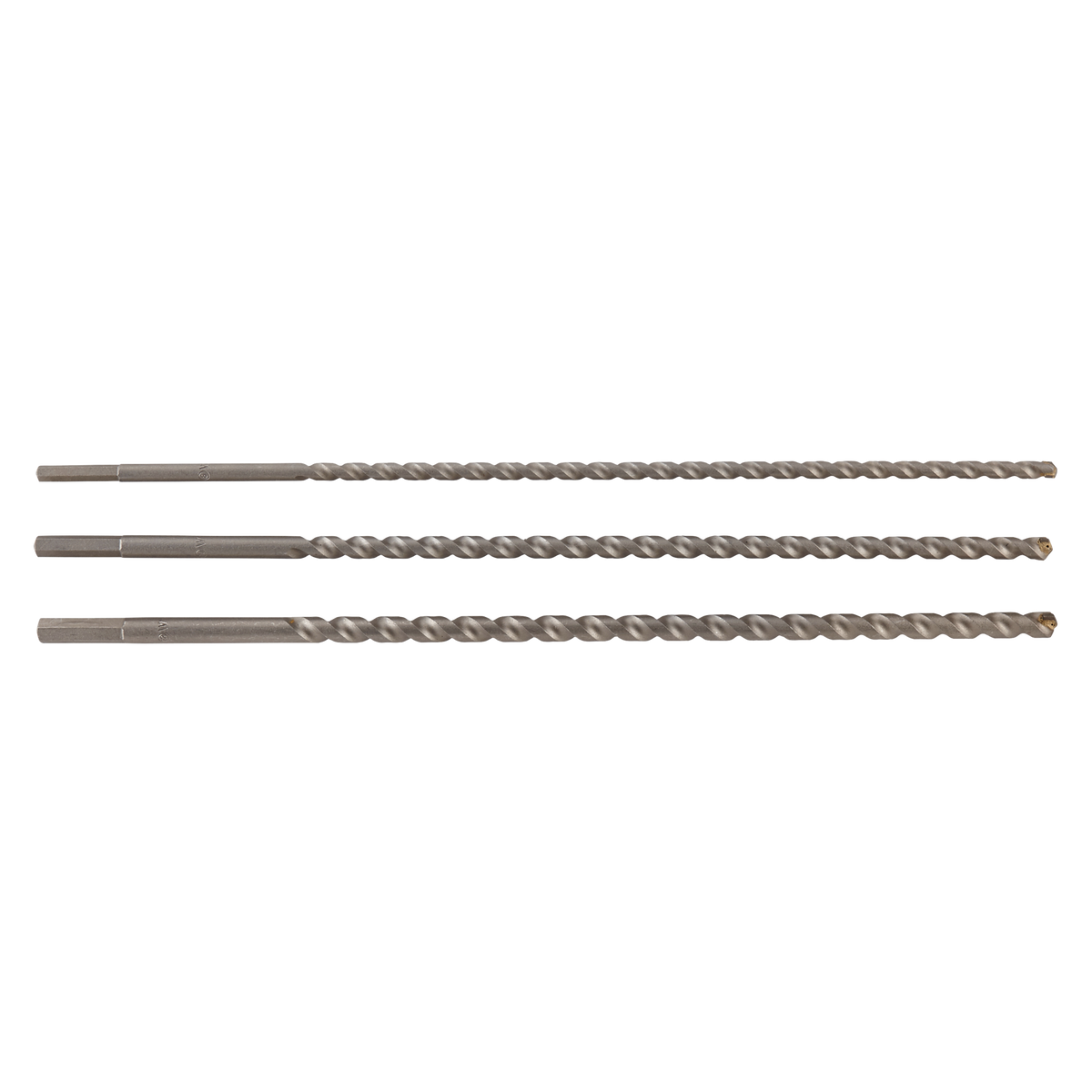

Masonry Breakthrough Drill Bit Set, Tungsten Carbide Tipped, Hexagon Shank

Properties

concrete drill bit set, impact and shock resistant, tungsten carbide tipped for drilling into brick walls

• 130° tip angle makes pilot drilling easier and ensures fast drilling progress
• precision-ground hard metal plate for high drilling performance in hard materials
• good drill dust removal due to special spiral geometry
• hexagon shank for quick tool changes
• compliance with DIN 5468 makes it a safe product choice
• contains 3 drill bits, in sizes Ø 8/10/12 mm

Description

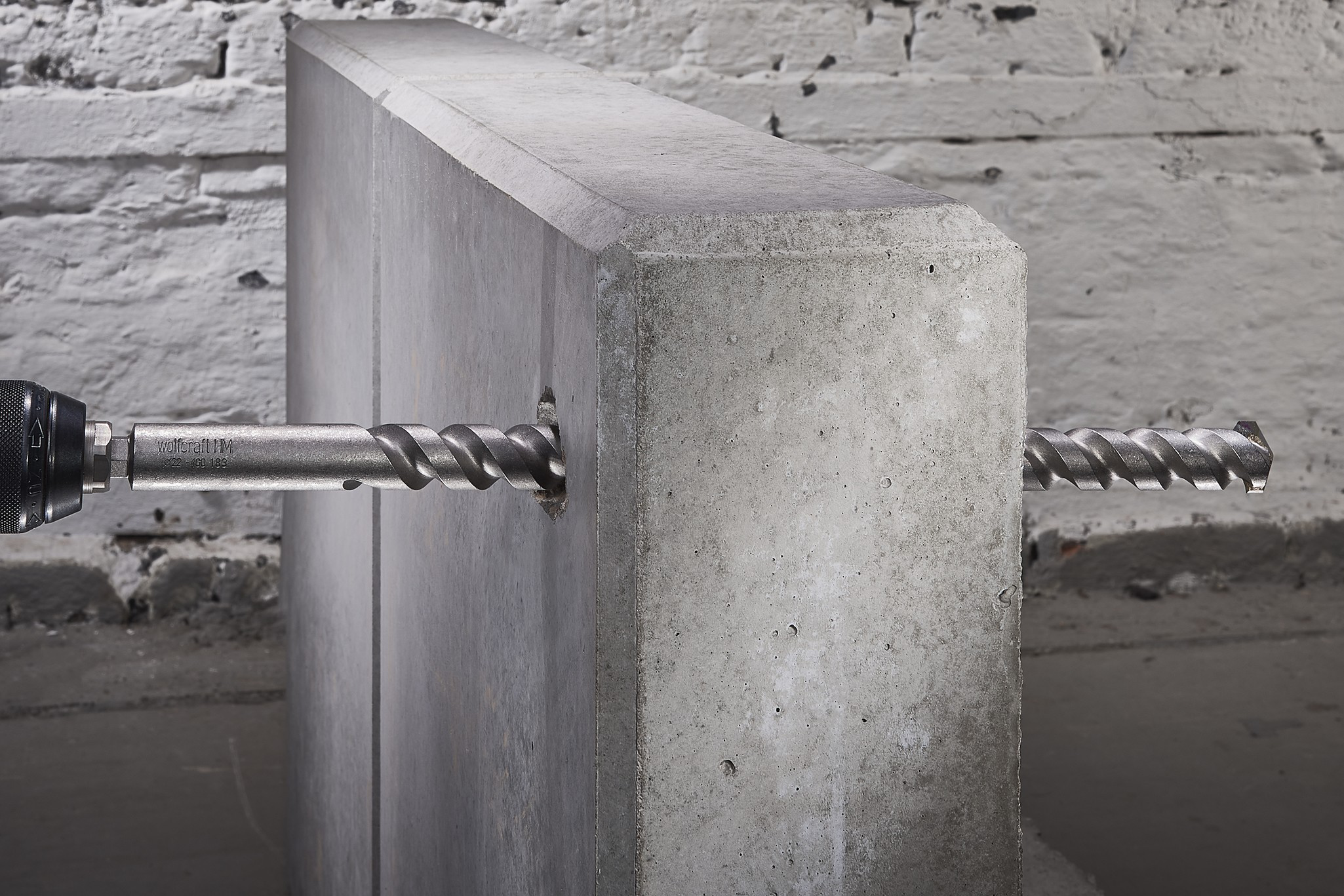

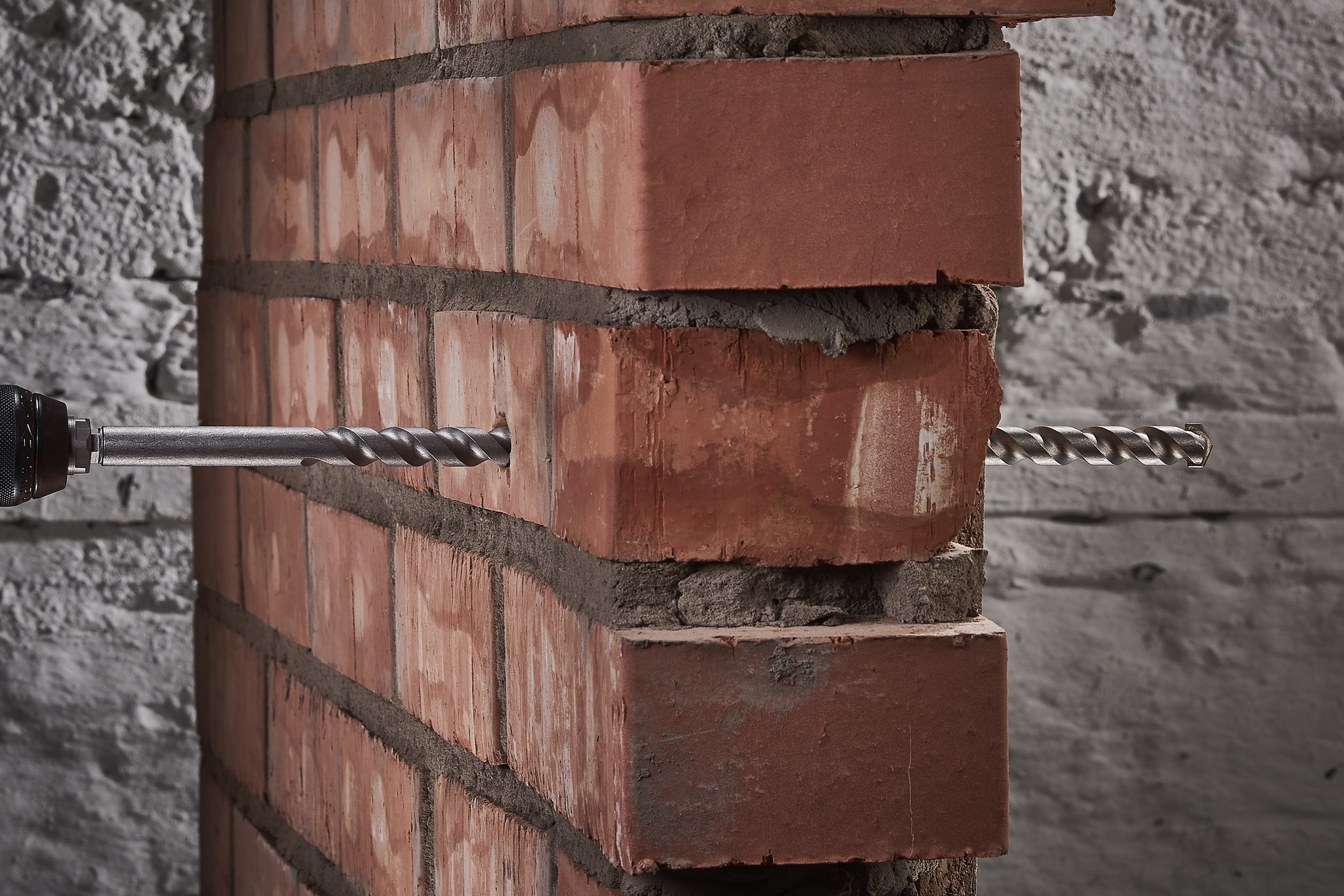

These impact and shock resistant masonry breakthrough drill bits are tungsten carbide tipped and specially suited for drilling into hard brick walls. The 130° tip angle makes pilot drilling easier and ensures fast drilling progress. The precision-ground hard metal plate ensures high drilling performance in hard materials. The special spiral geometry ensures good drill dust removal. The hexagon shank enables quick tool changes. The set contains 3 drill bits with sizes of Ø 8/10/12 mm and is compliant with DIN 5468.

Scope of delivery
1 masonry breakthrough drill bit, Ø 8 mm
1 masonry breakthrough drill bit, Ø 10 mm
1 masonry breakthrough drill bit, Ø 12 mm

Technical Data

Material	High-quality steel Tungsten carbide tipped
Drill tip angle	130 °
Shank version	Hexagon shank
According to standard	DIN ISO 5468
Direction of rotation	Clockwise rotation
Additional product specification	precision-ground hard metal plate hammer blow resistant
